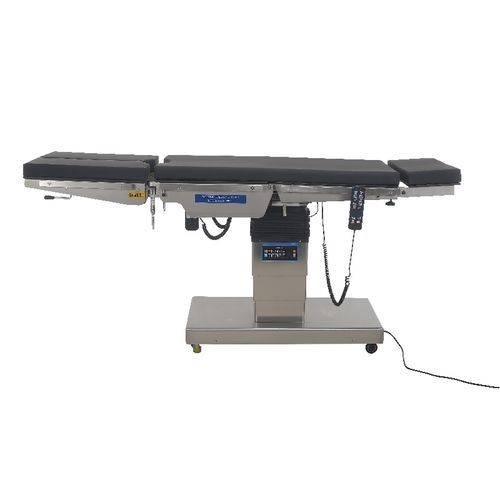

Universal operating table YK-OT3011electrictiltingadjustable height
Add to favorites
Compare this product
Characteristics
- Applications
- universal
- Operation
- electric
- Features
- tilting, adjustable height
- Total length
212.5 cm
(83.7 in)- Total width
55 cm
(21.7 in)
Description
Technical configuration
Detail illustrations
Specifications
- Overall length: 2125 mm
- Width: 550 mm
- Lifting height range: 700–1000 mm
- Trendelenburg / reverse Trendelenburg: ≥25° / ≥25°
- Lateral tilt: ≥15°
- Head plate up/down angle: +45° / -90°
- Back section up/down angle: 75° / -20°
- Leg section raise/lower from horizontal: 15° / 90°
- Leg section opening angle: 180°
- Backward/forward travel (longitudinal): 300 mm
- Kidney bridge elevation: ≥120 mm
Detail illustrations
- Product includes detailed diagram images for assembly, structural and sectional views available in the product detail tab (illustrative images).
Specifications
- Model: YK-OT3011
- Overall length: 2125 mm
- Width: 550 mm
- Adjustable height: 700–1000 mm
- Trendelenburg / reverse Trendelenburg: ≥25°
- Lateral tilt: ≥15°
- Head plate angle: +45° to -90°
- Back section angle: 75° to -20°
- Leg section vertical raise/lower: 15° / 90°
- Leg section opening angle: 180°
- Longitudinal travel: 300 mm
- Kidney bridge elevation: ≥120 mm
