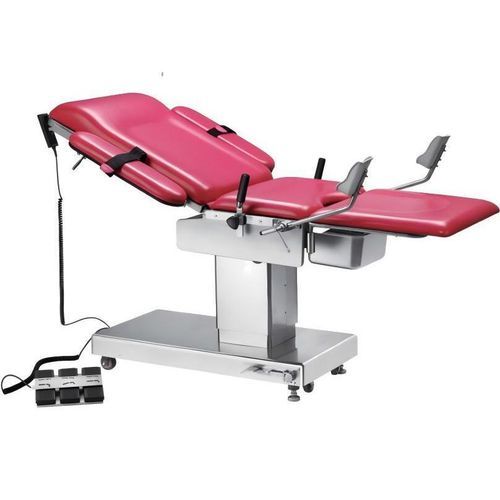

Universal operating table YK-OT3099electricadjustable heighttilting
Add to favorites
Compare this product
Characteristics
- Applications
- universal
- Operation
- electric
- Features
- adjustable height, tilting
- Components
- with legrest, with armrest, with headrest
- Number of sections
- 3-section
- Power source
- 220V / 50Hz
- Material
- stainless steel
- Total length
178 cm
(70.1 in)- Total width
60 cm
(23.6 in)
Description
Technical configuration
Specifications
Clinical features
Dimensions & weight
Ordering & options
- Full premium 304 stainless steel construction
- Control: hand remote control and foot pedal switch
- Table top (L×W): 1780 mm × 600 mm
- Elevation range (up/down): 680 mm – 880 mm
- Seat plate tilt (up/down): +20° / -8°
- Back plate tilt (up/down): +45° / -7°
- Power supply: 220 V, 50 Hz; two motors, 1.0 kW × 2
- Included supports: 2 × handle supports, 2 × arm supports, 1 × foot support, 1 × leg board
- Accessory: dirt pot (waste container) — 1 piece, packed in wooden case
- Packed dimensions (Meas): 1340 × 860 × 880 mm
- Gross weight / Net weight: 260 kg / 210 kg
Specifications
- Material: full premium 304 stainless steel for table top and frame
- Control method: hand-held remote control plus pedal switch for hands-free use
- Overall usable surface: 1780 mm (length) × 600 mm (width)
- Adjustability: height adjustable between 680 mm and 880 mm
- Angular adjustment: seat +20° / -8°; back +45° / -7°
- Drive: two electric motors, 1.0 kW each
- Electrical rating: 220 V, 50 Hz
- Standard attachments included as listed in technical configuration
Clinical features
- Electric height and tilt adjustments enable fast, precise positioning during procedures
- Dual-control modes (remote and pedal) support ergonomic and sterile workflows
- 304 stainless steel surfaces simplify cleaning and disinfecting in clinical environments
- Multiple supports and leg board increase versatility for different surgical specialties
- Compact packed dimensions facilitate transport and on-site installation
Dimensions & weight
- Table top: 1780 × 600 mm
- Elevation range: 680–880 mm
- Packed / shipment measurements: 1340 × 860 × 880 mm
- Gross weight: 260 kg
- Net weight: 210 kg
Ordering & options
- Standard supply: table, listed supports and 1 dirt pot in wooden case
- Optional accessories and customization available on request (contact supplier)
- Electrical connection: confirm local voltage and plug type before installation
- Installation: recommended professional handling for placement and commissioning
