Coronary arteries vascular model PCI Ⅰ

percutaneous coronary interventionfor stent implantationPCI

Product description

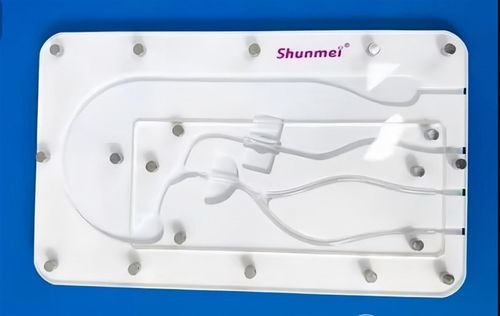

This is a 2D flat percutaneous coronary intervention (PCI) model extending from the radial artery to coronary branches. A transparent silicone vessel section is seated in a groove at the left circumflex artery. A rigid transparent printed block with an internal stenotic channel is inserted into the circumflex branch to simulate a stenotic lesion. The model features a transparent acrylic upper plate, a white acrylic lower plate and a square central channel for direct observation and catheter/guidewire demonstration.

Intended use / applications

• Simulating common coronary lesions (stenosis) and PCI procedures for training and demonstration.
• Development, bench testing and validation of coronary intervention devices: catheters, guidewires, microcatheters, micro-guidewires, stents, balloons and related devices.
• Product demonstrations, hands-on training courses and marketing presentations for coronary devices.

Customization options

• Length, severity and location of coronary stenosis can be customized on request.
• Additional lesion types (bifurcation, CTO, embolism) can be added as required.
• Models can be manufactured from customer data (CT, CAD, STL, STP, STEP formats supported).

Technical specifications

• Model code: XXS001
• Commercial name: PCI Model Ⅰ
• Material: silicone (vessel section); acrylic upper plate (transparent); acrylic lower plate (white)
• Type: 2D flat PCI model
• Design features: transparent silicone vessel seated in groove; rigid transparent printed block with internal stenotic channel; square central channel for observation and device manipulation
• Customization: length, severity, location of stenosis; optional bifurcation, CTO, embolism; supports CT/CAD/STL/STP/STEP input
• Intended use: training, demonstration, device development, testing and validation for coronary intervention devices
• Lead time: 7–15 days
• Payment terms: T/T
• Port of shipment: Ningbo, China
• Shipping methods: FedEx, DHL, EMS, UPS, TNT
• Note: product provided as a training/testing model for coronary interventions
