Coronary arteries vascular model XXD015

hepatic arterythoracic aortaheart

Product Overview

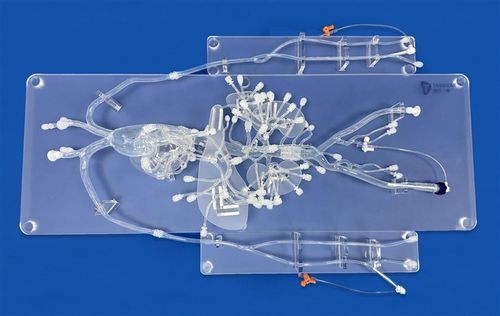

This coronary artery intervention model extends from the radial and femoral arteries to the coronary branches. It includes bilateral radial arteries, aortic arch, left and right coronary arteries, diagonal branch, left anterior descending branch (LAD), circumflex branch, abdominal aorta, hepatic artery, iliac artery and femoral artery. A detachable lesion segment is positioned on the LAD allowing replacement of different lesion morphologies such as stenosis, bifurcation and CTO. The model is mounted on a frosted acrylic plate and uses a transparent heart to provide a realistic spatial arrangement of the coronary arteries. Customized connectors enable replacement of coronary segments with different disease structures while maintaining device compatibility and smooth operation.

Product Usage

• Simulating common coronary lesions (stenosis, calcification, bifurcation, CTO, embolism) and performing PCI procedures.
• Development, testing and validation of coronary interventional devices: catheters, guidewires, microcatheters, micro guidewires, stents, balloons, etc.
• Device demonstrations, operator training and marketing presentations.

Customization Options

• Customizable length, severity and location of stenosis, bifurcation or embolism segments.
• Aortic arch configurable as Type I, Type II, Type III or anomalous arch.
• Model customization based on customer-supplied CT/CAD/STL/STP/STEP files.

Technical specifications

• Model: XXD015
• Material: silicone
• Included anatomical components: bilateral radial arteries, aortic arch, left and right coronary arteries, diagonal branch, LAD, circumflex branch, abdominal aorta, hepatic artery, iliac artery, femoral artery
• Detachable lesion segment on the LAD for interchangeable lesion structures (stenosis, bifurcation, CTO)
• Mounting: fixed on a frosted acrylic plate
• Transparent heart to provide realistic spatial structure
• Connectors: customized connectors for interchangeable disease structures while preserving device function
• Compatible testing/devices: catheters, guidewires, microcatheters, micro guidewires, stents, balloons
• Typical applications: lesion simulation and PCI procedures, R&D, device testing and validation, demonstrations, training, marketing
• Port: Ningbo, China
• Payment: T/T
• Lead time: 7-15 days
• ODM services available
