Coronary arteries vascular model PCI Ⅱ

radial arterythoracic aortapercutaneous coronary intervention

Product Description:

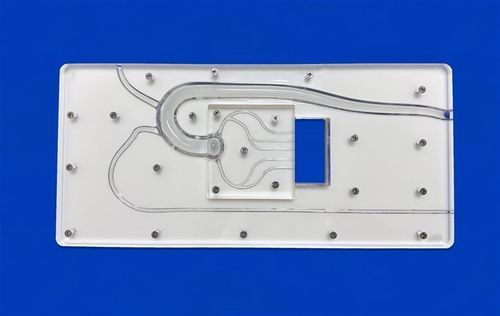

This 2D coronary interventional training model represents the aorta, radial artery and coronary arteries. The coronary artery section features a detachable modular design, allowing the complete coronary module to be removed and replaced within the main model to simulate different coronary anatomies and lesion types. The distal end of the coronary module has an open outlet to provide sufficient working space for guidewires, catheters and other interventional devices. The model uses a transparent acrylic upper plate and a white acrylic lower plate to facilitate visualization of catheter and guidewire manipulation.

Product Applications:

• Development, testing and validation of coronary interventional devices such as catheters, guidewires, microcatheters, stents and balloons.
• Coronary interventional training, skills demonstration and product presentations.

Customization Options:

• Aortic arch configurable as Type I, Type II, Type III or variant arch anatomies.
• Optional bilateral radial artery structures.
• Coronary lesions (bifurcation, CTO, calcification, stenosis) can be incorporated on request.
• Custom models manufactured from customer-provided CAD, STL, STP, STEP or other data files.

Specifications:

• Model code: XX-008D
• Product ID: 28636108
• Model type: 2D coronary interventional training model (aorta, radial artery, coronary arteries)
• Detachable modular coronary artery section (removable/replaceable coronary module)
• Distal coronary module with open outlet for guidewires, catheters and interventional devices
• Upper plate: transparent acrylic; Lower plate: white acrylic
• Material: Silicone
• Customization: design service and technical solutions available
• Payment terms: T/T
• Lead time: 7-15 days
• Port: Ningbo, China
• Shipping methods: FedEx, DHL, EMS, UPS, TNT
