Femoral artery vascular model XXS015

cerebralinternal carotid arterysubclavian artery

Basic Information
Model: XXS015
Material: Silicone
Custom service: providing free design service & technical solutions
Payment: T/T
Lead time: 7-15 days
Port: Ningbo, China
Shipping Methods: FedEx, DHL, EMS, UPS, TNT

Product Description

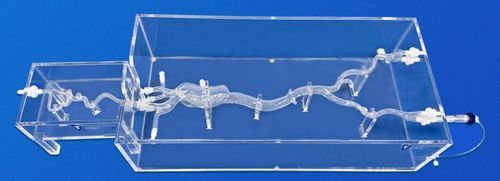

The model extends from the femoral artery to the cerebral arteries. It includes the femoral artery, ascending aorta, aortic arch, descending aorta, subclavian artery, and carotid artery. The intracranial part consists of a single carotid artery containing two saccular aneurysms. The model is installed in a transparent acrylic box, providing a realistic spatial structure. Through custom connectors, the intracranial and aortic parts can be freely connected and disassembled. These two parts can be customized and replaced according to intended use and requirements.

Product Usage

• Simulating aneurysm tamponade and cerebral angiography examination.
• Applicable for development, testing, and validation of neuro-interventional devices, including coils, catheters, guidewires, micro catheters, micro guidewires, etc.
• Applicable for demonstration, training, and marketing of neuro-interventional devices.
• Quantitative blood flow analysis, including CTA, DSA, MRA, OCT, PIV, and other imaging and flow measurement methods.

Customization Service Options

• Aortic arch: can be replaced with Type I arch, Type II arch, Type III arch, and anomalous arch.
• Carotid arteries: additional tortuous structures and embolic lesions can be added.
• Radial arteries: simple or spatial access can be added.
• Abdominal part: the structure can be complexified based on specific needs.
• Model customization based on provided data files in formats such as CT, CAD, STL.

Technical specifications

• Product name: Neruo Vascular Model with Arch Type No.3
• Model number (page): XXS015
• Material: Silicone
• Installation: Installed in a transparent acrylic box
• Intracranial feature: single carotid artery with two saccular aneurysms
• Aortic arch (description): Type I arch (page text). Note: product title includes Arch Type No.3.
• Custom connectors: intracranial and aortic parts can be connected/disassembled and replaced
• Applicable imaging / analysis: CTA, DSA, MRA, OCT, PIV
• Lead time: 7-15 days
• Port of shipment: Ningbo, China
• Shipping methods available: FedEx, DHL, EMS, UPS, TNT
• Product ID (page): 303038503
