*mymedicalexpo

Femoral artery vascular model XXD011
thoracic aortailiac arteryabdominal aorta

Femoral artery vascular model - XXD011 - Trando 3D Medical Technology - thoracic aorta / iliac artery / abdominal aorta

Add to favorites

Compare this product

Go to the Trando 3D Medical Technology website for more information

Characteristics

Area of the body: femoral artery, abdominal aorta, thoracic aorta, iliac artery
Material: silicone
Accessories: with blood vessels

Description

Product Overview

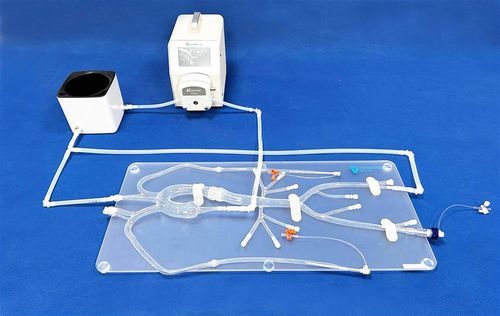

The model extends from the femoral artery to the ascending aorta and includes major arteries such as the aortic arch, abdominal aorta, iliac artery, and femoral artery. It is designed as a configurable testing platform to be used in conjunction with one or more neuro and peripheral vascular models. The default aortic arch type is Type I; it can be replaced by Type II, Type III, and irregular aortic arches.

Product Functions

Applicable for development, testing, and validation of peripheral intervention devices including guide wires and catheters.
Applicable for training and demonstration of peripheral intervention procedures.
Suitable for quantitative analysis of blood perfusion (CTA, DSA, MRA, OOT, PIV and doppler sonography).

Customization Service

The aortic arch can be customized as arch type II, arch type III and other types.
More complex structures can be added onto the abdominal part; common lesions such as aneurysm, stenosis and embolism can be added.
Custom models can be produced based on CAD, STL, STP, STEP and other data provided by the customer.

Additional Information

Model code: XXD011
Material: Silicone
Custom service: free design service and technical solutions provided
Payment: T/T
Lead time: 7-15 days
Port: Ningbo, China
Shipping methods: FedEx, DHL, EMS, UPS, TNT

Specifications / Technical data

Product ID: 303038415
Scope: extends from femoral artery to ascending aorta
Included arteries: aortic arch, abdominal aorta, iliac artery, femoral artery
Default arch type: Type I (replaceable by Type II, Type III, irregular)
Use cases: device development, testing and validation; procedural training and demonstration; quantitative blood perfusion analysis (CTA, DSA, MRA, OOT, PIV, doppler)
Compatible with neuro and peripheral vascular model platforms
Material: silicone (soft-tissue simulation)
Customization: lesion addition (aneurysm, stenosis, embolism), complex abdominal structures, CAD/STL-based custom production

Catalogs

No catalogs are available for this product.

See all of Trando 3D Medical Technology‘s catalogs

Go to the Trando 3D Medical Technology website for more information
