Heart vascular model XXK005D
aortic valvefemoral arteryblood vessels

Heart vascular model - XXK005D - Trando 3D Medical Technology - aortic valve / femoral artery / blood vessels

Heart vascular model - XXK005D - Trando 3D Medical Technology - aortic valve / femoral artery / blood vessels - image - 2

Heart vascular model - XXK005D - Trando 3D Medical Technology - aortic valve / femoral artery / blood vessels - image - 3

Heart vascular model - XXK005D - Trando 3D Medical Technology - aortic valve / femoral artery / blood vessels - image - 4

Heart vascular model - XXK005D - Trando 3D Medical Technology - aortic valve / femoral artery / blood vessels - image - 5

Heart vascular model - XXK005D - Trando 3D Medical Technology - aortic valve / femoral artery / blood vessels - image - 6

Add to favorites

Compare this product

Go to the Trando 3D Medical Technology website for more information

Characteristics

Area of the body: femoral artery, abdominal aorta, thoracic aorta, iliac artery, heart, blood vessels, aortic valve
Procedure: TAVR, endoscopy
Simulated pathology / condition: stenosis
Material: silicone
Accessories: with blood vessels
Other characteristics: transparent, 3D-printed

Description

Overview

Product: Transcatheter aortic valve replacement (TAVR) simulator
Model: XXK005D
Material: Transparent silicone
Size: Customised 3D printing
Brand: Trandomed (OEM, ODM accepted)
Lead time: 7-10 days
Port: Ningbo, China
Payment: T/T, Alipay, PayPal, L/C

Product introduction

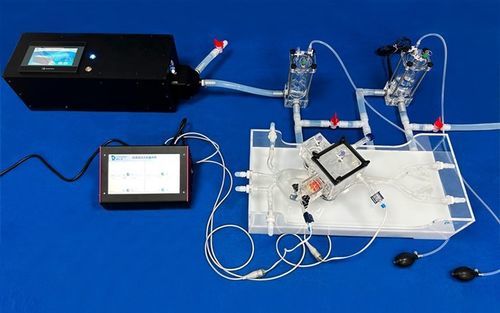

The simulator is composed of a TAVR vascular model, EDU-heart pump, 4-channel hemodynamic data acquisition system, systemic venous and drive compliance cylinders, four replaceable aortic valves (2 healthy, 2 calcified) and associated accessories.

Product usage

For demonstrations, clinical training and marketing of transcatheter aortic valve replacement procedures.
For modelling and emulation of normal and calcified aortic valve hemodynamics.
For testing and validation of mechanical aortic valves and percutaneous ventricular assist devices (PVAD).

Technical parameters

Heart rate (HR): 40–150 bpm (adjustable)
Heart systolic ratio: 30–50 %
Cardiac output (CO): 0–5 L/min
Stroke volume (SV): 10–80 mL (CO/HR) — value at pump outlet
End diastolic pressure (EDP): 0–20 mmHg (adjustable) — value at pump outlet
End systolic pressure (ESP): 0–150 mmHg
Diastolic pressure (DP): 40–80 mmHg
Systolic pressure (SP): 0–150 mmHg
Mean aortic pressure (mAoP): 60–90 mmHg (1/3 DP + 2/3 SP)

Features of each component

TAVR Model: Fixed in a transparent acrylic box; includes aortic arch, abdominal aorta, iliac and femoral arteries, replaceable simulated left ventricle and replaceable aortic valve. Five pressure testing points are distributed for sensor testing. A quick-fixing valve frame enables fast installation and removal of valves.
EDU-Heart Pump: Piston pump with adjustable heart rate and stroke volume producing physiological waveforms and providing continuous circulation drive within the simulator.
4-Channel Hemodynamic Data Acquisition System: Control box and software (laptop-installed) to test, acquire and record up to four pressure points simultaneously. Functions include sensor calibration, multi-channel and independent pressure display, and data storage.

Specifications

Model: XXK005D
Material: Transparent silicone
Size: Customised 3D printing
Brand: Trandomed (OEM, ODM accepted)
Lead time: 7-10 days
Heart rate (HR): 40–150 bpm (adjustable)
Heart systolic ratio: 30–50 %
Cardiac output (CO): 0–5 L/min
Stroke volume (SV): 10–80 mL (CO/HR); value at outlet of the pump
End diastolic pressure (EDP): 0–20 mmHg (adjustable)
End systolic pressure (ESP): 0–150 mmHg
Diastolic pressure (DP): 40–80 mmHg
Systolic pressure (SP): 0–150 mmHg
Mean aortic pressure (mAoP): 60–90 mmHg (1/3 DP + 2/3 SP)
