Celiac trunk vascular model XXK003D

mesenteric arteryfemoral arteryiliac artery

Product description

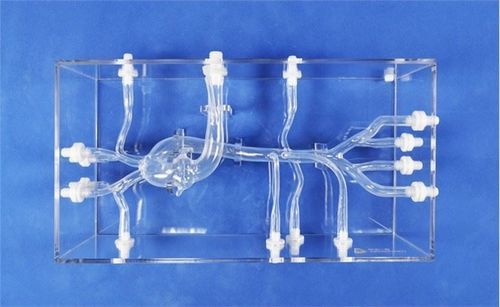

This aortic arch model includes the femoral artery, iliac artery, abdominal aorta, celiac trunk, renal artery, superior mesenteric artery, thoracic aorta, aortic arch and ascending aorta. The vascular network is fixed inside a transparent acrylic box using connectors; the distal connectors are gathered into a customised manifold to enable straightforward connection to a pump for flow simulation and device testing.

Product functions

• Designed for development, bench testing and validation of peripheral interventional devices (guidewires, catheters, balloons, stents, etc.).
• Suitable for hands-on training and procedural demonstration of peripheral endovascular interventions.
• Compatible with quantitative perfusion and imaging studies (CTA, DSA, MRA, OOT, PIV and Doppler ultrasound).

Customization service

• Aortic arch geometry can be customised (e.g. arch type II, arch type III and other anatomical variants).
• Additional complex structures can be added to the abdominal segment; common lesions such as aneurysm, stenosis and embolism can be incorporated.
• Lesions (aneurysm, stenosis, embolism) can be created on demand for specific testing or training scenarios.
• Custom models can be manufactured from CAD, STL, STP, STEP and other data provided by the customer.

Technical specifications

• Model: XXK003D
• Material: silicone
• Mounting: transparent acrylic box with connectors
• Port: Ningbo, China
• Payment: T/T
• Lead time: 7-15 days
• ODM services available
