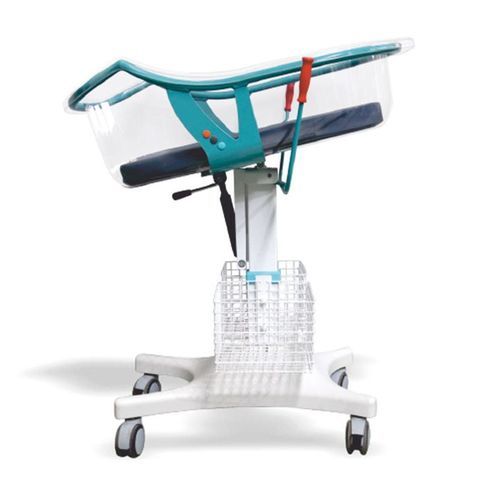

Height-adjustable hospital bassinet DP 7015

Trendelenburgreverse Trendelenburgon casters

Overview
The TRINODAL DP 7015 baby bassinet with height adjustment, Trendelenburg and reverse Trendelenburg is developed for modern maternity wards, neonatal units and clinical environments that require precise newborn positioning and ergonomic caregiver access. It supports safe newborn handling while enhancing observation and mother–baby interaction.

Materials and Design
The bassinet is made from transparent high-quality polycarbonate for excellent visibility and impact resistance. The structure includes a deep bassinet bowl, an ABS bottom cover and an epoxy powder-coated main frame for durable, hygienic surfaces. Mobility is provided by swivel and lockable castors for easy transport and secure positioning.

Functions and Benefits
The pneumatic height adjustment system allows comfortable working height for clinicians and parents. Integrated pneumatically assisted Trendelenburg and reverse Trendelenburg positions (12° each) enable flexible neonatal positioning according to care needs. The reverse Trendelenburg (head-up) position aids fluid management and can reduce aspiration risk associated with regurgitation during routine care. A PU-covered, PVC-free mattress is supplied.

Photo Gallery

• Multiple images showing different views and configurations of the DP 7015

Specifications

• Polycarbonate bassinet (transparent, high-quality)
• ABS cover at the bottom
• 12° head-up (reverse Trendelenburg) position
• 12° Trendelenburg position
• Pneumatic height adjustment
• Epoxy powder coated main construction
• Standard colors: Pink and Blue (Turquoise)
• PU covered, PVC-free mattress included
• Two 360° swivel castors / Two lockable castors (Ø 50 mm)

Technical Dimensions

• External dimensions: Width 570 mm, Length 860 mm
• Height: Min. 790 mm, Max. 940 mm
• Standard weight capacity: 40 kg
• Castor diameter: Ø 50 mm (standard)
• Mattress dimension: 640 x 340 x 50 mm

Optional Parts

• Two 360° swivel castors / Two lockable castors (Ø 75 mm)
• Name card holder
• Metal basket for baby belongings (150 x 150 x 200 mm)
• Additional colour options (MOQ required)

Technical specifications

• Model: DP 7015
• Polycarbonate bassinet (transparent, high-quality)
• ABS cover at the bottom
• Pneumatic height adjustment
• Trendelenburg position: 12°
• Reverse Trendelenburg (head-up) position: 12°
• Epoxy powder coated main construction
• Standard colors: Pink and Blue (Turquoise)
• PU covered, PVC-free mattress included (640 x 340 x 50 mm)
• External dimensions: Width 570 mm, Length 860 mm
• Height range: Min. 790 mm – Max. 940 mm
• Standard weight capacity: 40 kg
• Castor diameter: Ø 50 mm (standard); optional Ø 75 mm castors available
• Optional parts: name card holder, metal basket for baby belongings (150 x 150 x 200 mm), additional colour options (MOQ required)
