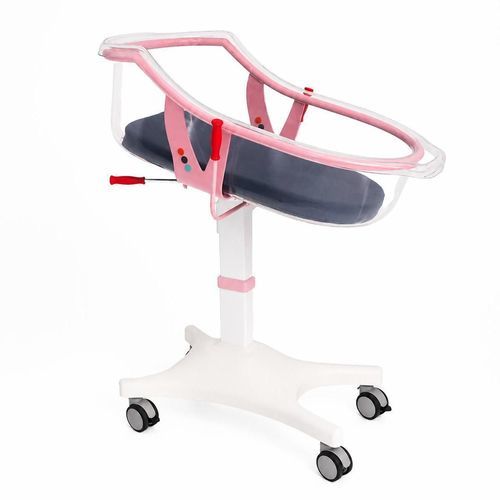

Height-adjustable hospital bassinet DP 7010

reverse Trendelenburgwith storage unittransparent

Product overview
The TRINODAL DP 7010 neonatal bassinet with pneumatic height adjustment and reverse Trendelenburg is designed for maternity wards, neonatal care units and hospital environments that require safe, hygienic and ergonomic newborn care solutions. The bassinet is manufactured from transparent polycarbonate, providing clear visibility, impact resistance and long-term resistance to yellowing. Its deep and secure basin supports safe newborn positioning while facilitating mother–baby interaction and caregiver observation. The pneumatic height adjustment enables efficient operation for clinicians and parents during routine neonatal care. The integrated 12° reverse Trendelenburg (head-up) position assists fluid management and helps reduce aspiration risk related to regurgitation. The unit combines smooth mobility, hygienic surfaces and an epoxy powder coated frame for practical neonatal care functionality.

Specifications

• Polycarbonate bassinet
• ABS bottom cover
• 12° head-up (reverse Trendelenburg) position
• Pneumatic height adjustment
• Epoxy powder coated main construction
• Standard colors: Pink and Blue (Turquoise)
• PU-covered, PVC-free mattress included
• Two 360° swivel castors and two lockable castors (Ø50 mm) standard

Technical Dimensions

• External dimensions: Width 570 mm, Length 860 mm
• Height: Min. 790 mm, Max. 940 mm
• Standard weight capacity: 40 kg
• Castor diameter: Ø 50 mm
• Mattress dimensions: 640 x 340 x 50 mm

Optional Parts

• Two 360° swivel castors / two lockable castors (Ø75 mm)
• Name card holder
• Metal basket for baby belongings (150 x 150 x 200 mm)
• Trendelenburg position
• Color options (MOQ required)

Technical Specifications

• Model: DP 7010
• Bassinet material: Transparent polycarbonate
• Bottom cover: ABS
• Reverse Trendelenburg: 12° head-up position
• Height adjustment: Pneumatic, range 790–940 mm
• External dimensions: 570 mm (W) x 860 mm (L)
• Mattress: PU covered, PVC-free; 640 x 340 x 50 mm
• Standard weight capacity: 40 kg
• Castors: Two 360° swivel and two lockable (Ø50 mm) standard; optional Ø75 mm
• Main construction finish: Epoxy powder coated
• Standard colors: Pink and Blue (Turquoise)
