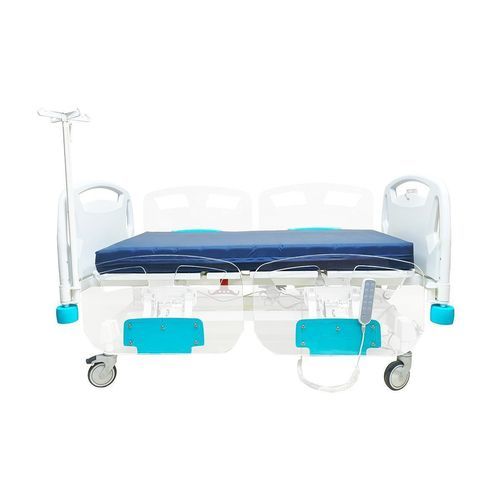

Hospital bed DP 4020 VISION

electricpediatricTrendelenburg

Product Overview
The DP 4020 VISION pediatric hospital bed is designed for pediatric care environments requiring clear patient observation, ergonomic caregiver operation and advanced electronic positioning. The 4-motor column system delivers smooth, quiet and stable movement while the 5-function electronic system controls backrest, kneerest, height, Trendelenburg and reverse Trendelenburg for efficient patient positioning. Transparent plexiglass side rails improve visibility and create a more open care environment without compromising safety. Practical accessories include nurse control panel, hand remote, urine bag holders and painted adjustable IV pole. The steel mattress platform and pediatric-specific ergonomics ensure reliable clinical performance. Optional items such as HPL backrest with X-ray cassette holder, manual CPR, bed extension and Ø150 mm central lockable castors offer flexible configuration for advanced pediatric needs.

Features

• 4-motorized column pediatric bed
• Hand remote control
• Nurse control panel
• Backrest up to 70°
• Kneerest up to 45°
• Trendelenburg / Reverse Trendelenburg 16°
• Electronic backrest, kneerest, height, Trendelenburg and reverse Trendelenburg (5 functions)
• Urine bag holders on both sides
• Transparent plexiglass side rails
• Detachable PP head and foot boards
• Epoxy powder-coated steel frame
• 4-section metal mattress platform
• Removable & height-adjustable painted IV pole
• IV pole sockets at four corners
• Four corner bumpers
• 360° swivel, cross-lockable castors Ø125 mm

Technical Dimensions

• External dimensions: W 950 mm × L 1695 mm
• Height adjustment (without mattress): 510–860 mm
• Bed surface: W 700 mm × L 1500 mm
• Castor diameter (cross-lockable): 125 mm
• Safe working load: 180 kg

Optional Parts

• Stainless steel IV pole
• Manual CPR
• HPL backrest & X-ray cassette holder / bed extension
• Ø150 mm central lockable castors
• Trapeze bar for patient lift

Technical Specifications

• 4-motor column system for smooth, silent and stable movement
• 5 electronic functions: backrest, kneerest, height, Trendelenburg and reverse Trendelenburg
• Backrest up to 70°, kneerest up to 45°
• Trendelenburg / reverse Trendelenburg: 16°
• Transparent plexiglass side rails for improved observation
• Detachable PP head and foot boards
• Epoxy powder-coated steel main frame
• 4-section metal mattress platform
• Removable and height-adjustable painted IV pole; IV pole sockets at four corners
• Four corner bumpers
• 360° swivel and cross-lockable castors Ø125 mm (optional Ø150 mm central lockable castors)
• External dimensions W 950 mm × L 1695 mm; bed surface W 700 mm × L 1500 mm
• Height adjustment range (no mattress): 510–860 mm
• Safe working load capacity: 180 kg
