Hospital bed DP 4010 CARE

electricpediatricTrendelenburg

Product Overview

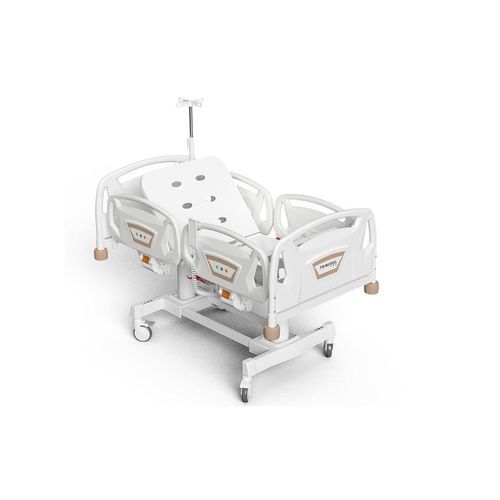

The Trinodal DP 4010 CARE is a pediatric electric bed designed for pediatric wards and clinical environments that require safe patient positioning, ergonomic caregiver operation and reliable daily performance. The bed uses a 4 motorized column drive and a 5-function electronic system to enable precise adjustment of backrest, kneerest, height, Trendelenburg and reverse Trendelenburg positions.

Key Features

• 4 motorized column pediatric bed
• Ergonomic hand remote control for all electronic functions
• Backrest up to 70°
• Kneerest up to 45°
• Trendelenburg and reverse Trendelenburg up to 16°
• Electronic 5-function operation: backrest, kneerest, height, Trendelenburg, reverse Trendelenburg
• Urine bag holders on both sides
• Pisagor side rails for pediatric protection
• Detachable PP head and foot boards
• Epoxy powder coated steel main frame
• 4-section metal bed platform
• Removable and height-adjustable painted I.V. pole; I.V. pole sockets at four corners
• Four corner bumpers for transport and protection
• Ø125 mm 360° swivel, cross-lockable castors

Technical Dimensions

• External dimension: Width 950 mm, Length 1695 mm
• Bed surface dimension: Width 700 mm, Length 1500 mm
• Height adjustment (without mattress): 510–860 mm
• Castor diameter (cross lockable): 125 mm
• Safe working load capacity: 180 kg

Optional Parts

• Nurse control panel
• Stainless steel I.V. pole
• Manual CPR
• Trapeze bar for patient lift

Technical Specifications

• Model: DP 4010 CARE
• Manufacturer / Brand: Trinodal
• 4 motorized column system with 5-function electronic operation
• Ergonomic hand remote unit for all electronic functions
• Backrest up to 70°, kneerest up to 45°
• Trendelenburg and reverse Trendelenburg up to 16°
• Epoxy powder coated steel frame and durable 4-section metal mattress platform
• Pisagor side rails for pediatric patient protection
• PP detachable head and foot boards
• Removable & height-adjustable painted I.V. pole; I.V. pole sockets at four corners
• Four corner bumpers
• Ø125 mm 360° swivel, cross-lockable castors
• External dimensions: 950 mm (W) x 1695 mm (L)
• Bed surface dimensions: 700 mm (W) x 1500 mm (L)
• Height adjustment range (without mattress): 510–860 mm
• Safe working load capacity: 180 kg
