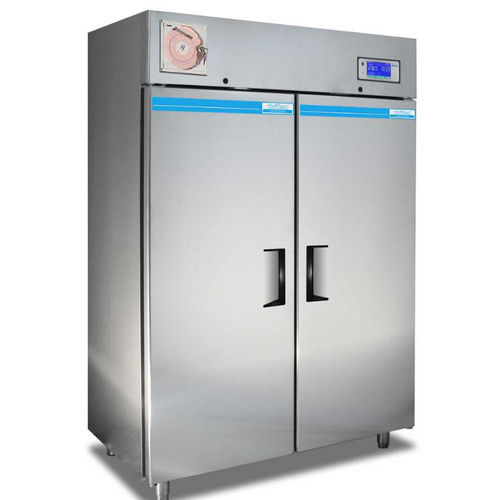

Blood plasma freezer TC 513
upright2-doorautomatic defrost

blood plasma freezer
blood plasma freezer
blood plasma freezer
Add to favorites
Compare this product


for blood plasma
Number of doors
Defrost mode
automatic defrost
Other characteristics
stainless steel

1,500 l (396.3 gal)

Temperature range

Max.: -15 °C (5 °F)

Min.: -40 °C (-40 °F)


These blood plasma storage cabinets are designed for DIN - compliant storage of already frozen blood plasma bags. External Dimensions: B = 1500 mm D = 860 mm H = 2100 mm Internal Dimensions: B = 1345 mm (clear door with: 545 mm) D = 670 mm H = 1230 mm Capacity: 1500 l Temperaturerange: -15°C to -40°C Housing galvanized sheet steel with high quality white coating. With 4 feet, height adjustable. Optional: of stainless steel (Backplane, as well as top and bottom side of the cabinet of galvanised sheet steel) Set of 4 castors, 2 lockable Interior space Inner case of galvanized sheet steel with high quality white coating. Cleaning friendly by rounded corners, slippery surface in the interior, meets highest hygiene requirements Optional:of stainless steel Insulation high density foamed-in-place polyurethane, with a thickness of 75 mm. CFC-free Circulaton air cooling for rapid and uniform temperature control, reducing temperature gradients to a minimum. When the door is "open" the circulating fan is switched off automatically by a micro switch in order to prevent warmer ambient air being drawn in. Door Three-layer thermally insulating glass two-door, right and left hand hinge. Grease resistant magnetic seal. Optional: with door lock Interior fittings 10 pcs. Stainless Steel drawer compartments, with 3 lengthwise dividers with telescopic-type guides on rollers with stops, Drawer dimensions: 500x580x77 mm (BxDxH) Usable with between the lengthwise dividers: 106 mm (lengthwise dividers easily removable)
