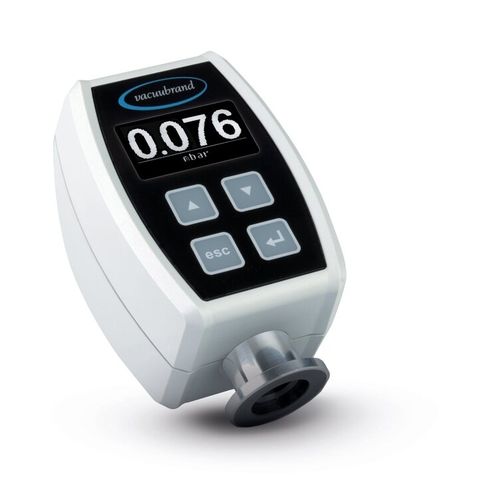

Laboratory vacuum meter VACUU·VIEW extended

digitalbenchtopcompact

Overview

• Precision and chemical resistance across a wide range from atmosphere down to 1 x 10^-3 mbar; single gauge for rough and fine vacuum monitoring
• Compact design with integrated sensors for convenient laboratory and process installation
• Chemically resistant sensor combination: ceramic diaphragm sensor and ceramic‑jacketed Pirani sensor for extended service life with aggressive media
• Illuminated display for easy reading
• Menu‑driven display for simple unit and setting configuration

Description
The VACUU·VIEW extended vacuum gauge is designed to monitor vacuum processes in the rough and fine vacuum ranges. The combination of a ceramic diaphragm sensor and a ceramic‑jacketed Pirani sensor provides reliable readings from atmosphere down to 1 x 10^-3 mbar. The instrument is delivered ready for operation with integrated vacuum sensors, kit hose nozzle DN 6/10 mm, wall‑plug power supply and user manual.

Availability
Deliverable in 1-3 weeks

Technical data and graphs
Upper measuring limit (mbar/hPa): 1100 mbar
Upper measuring limit (torr): 825 torr
Lower measuring limit (mbar/hPa): 1 x 10^-3 mbar
Lower measuring limit (torr): 1 x 10^-3 torr
Measurement principle: Ceramic diaphragm sensor + ceramic‑jacketed Pirani sensor
Accuracy: ±15% of indicated value (0.01-5 mbar); ±3 mbar for > 5 mbar
ATEX conformity: II 3/- G Ex h IIC T4 Gc X (internal atmosphere only)
Temperature coefficient: ±0.2 mbar/hPa / 0.15 torr /K
Vacuum connection: Small flange KF DN 16 and hose nozzle DN 6/10 mm
Storage temperature: -10 °C to 60 °C
Operating temperature: 10 °C to 40 °C
Max. media temperature (continuous): 40 °C
Max. media temperature (short term): 80 °C
Housing material: Chemical‑resistant plastic housing
Venting valve: No
Protection class (IEC 60529): IP 54
Protection class (UL50E): Type 5
Weight: 0.19 kg
Dimensions (L x W x H): 50 x 62 x 103 mm
Vacuum sensor: Integrated
Cable length: 2 m
NRTL certification: Yes

Items supplied
Vacuum gauge with integrated vacuum sensors, kit hose nozzle DN 6/10 mm, wall‑plug power supply and manual

Characteristics / technical specifications

• Measurement range: atmosphere to 1 x 10^-3 mbar
• Sensor combination: ceramic diaphragm + ceramic‑jacketed Pirani
• Display: illuminated, menu‑driven
• Accuracy: ±15% (0.01–5 mbar); ±3 mbar (>5 mbar)
• Connections: KF DN16 flange and hose nozzle DN 6/10 mm
• Temperature ranges: storage -10…60 °C; operation 10…40 °C; media max 40 °C (short term 80 °C)
• Ingress protection: IP54; UL50E Type 5
• Dimensions & weight: 50 x 62 x 103 mm; 0.19 kg
• Power and cabling: supplied with wall‑plug power supply and 2 m cable
• Certifications: ATEX and NRTL
