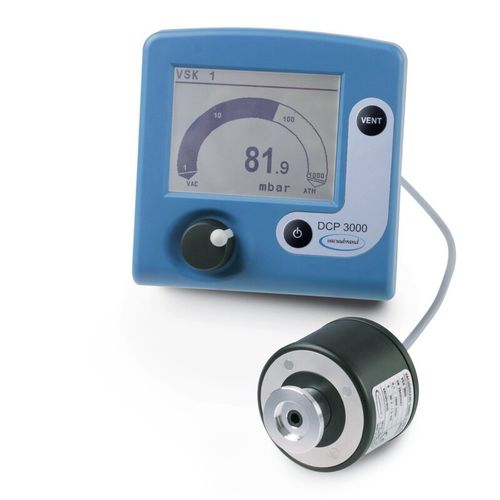

Digital vacuum meter DCP 3000

Overview

• Vacuum measuring device for connecting external vacuum sensors for measurements directly on the system
• Flexible and expandable: up to eight sensors (up to 4 × VSK 3000 / VACUU·VIEW and 4 × VSP 3000 / VACUU·VIEW extended)
• Relative pressure measurement with reference sensor (VSK 3000) and data-logger up to 32,000 measuring points (RS 232C)
• Capacitive ceramic diaphragm vacuum sensor VSK 3000 (alumina), gas-type independent absolute pressure measurement, high chemical resistance
• Excellent measurement accuracy, temperature and long-term stability; interfaces: RS 232C; connections: KF DN16, PTFE 10/8 mm, hose nozzle DN 6/10 mm

Description
The fully electronic vacuum gauge set DCP 3000 + VSK 3000 provides direct on‑site pressure measurement with a large illuminated display and an easy rotary selector for all connected sensors. Up to eight vacuum sensors can be connected to the DCP 3000 (combinations of VSK 3000 / VACUU·VIEW and VSP 3000 / VACUU·VIEW extended). The instrument supports relative pressure measurement using a reference sensor (VSK 3000), pressure-dependent switching points for external valves, and operation as a data logger with up to 32,000 measuring points. Data export is available via the RS‑232C interface. The VSK 3000 is a capacitive ceramic diaphragm sensor (alumina) covering atmosphere down to 0.1 mbar; it delivers gas-independent absolute pressure readings and high chemical resistance, suitable for direct process measurement with stable temperature and long-term behaviour. Refer to VACUU·VIEW as an alternative product option.

Technical data and graphs
Upper measuring limit (mbar/hPa): 1080 mbar
Upper measuring limit (torr): 810 torr
Lower measuring limit (mbar/hPa): 0.1 mbar
Lower measuring limit (torr): 0.1 torr
Measurement principle: Ceramic diaphragm (alumina), capacitive, gas independent, absolute pressure
Accuracy: < ±1 mbar/hPa/torr / ±1 digit (after adjustment, constant temperature)
ATEX: II 3/- G Ex h IIC T3 Gc X (internal atmosphere only)
Temperature coefficient: < 0.07 mbar/hPa / 0.05 torr /K
Vacuum connections: KF DN16 small flange; PTFE tubing connection 10/8 mm; hose nozzle DN 6/10 mm
Storage temperature: -10 °C to 60 °C
Operating temperature: 10 °C to 40 °C
Max. media temperature (continuous): 40 °C; short term: 80 °C
Housing material: robust plastic with good chemical resistance
Protection class IEC 60529: IP20 (front: IP42)
Protection class UL50E: Type 1
Weight: 0.44 kg
Dimensions (L × W × H): 144 × 124 × 114 mm
Sensor: VSK 3000 (external), sensor cable: 2 m; connection cable: 2 m
Interface: RS 232C; NRTL certified

Characteristics / technical specifications

• Product: Set DCP 3000 + VSK 3000 (vacuum gauge set)
• Sensor type: VSK 3000 capacitive ceramic diaphragm (alumina), gas-independent
• Measuring range: Atmosphere down to 0.1 mbar (VSK 3000)
• Expandability: Up to 8 sensors (max. 4 × VSK 3000 / VACUU·VIEW and 4 × VSP 3000 / VACUU·VIEW extended)
• Data logging: Up to 32,000 measuring points (RS 232C)
• Connection options: KF DN16, PTFE tubing 10/8 mm, hose nozzle DN 6/10 mm
• Operating temperature: 10 °C to 40 °C; Storage: -10 °C to 60 °C
• Protection class: IP20 (housing), IP42 front; UL50E Type 1
• Weight & dimensions: 0.44 kg; 144 × 124 × 114 mm
• Power / Certification: Mains adapter included; NRTL certification
