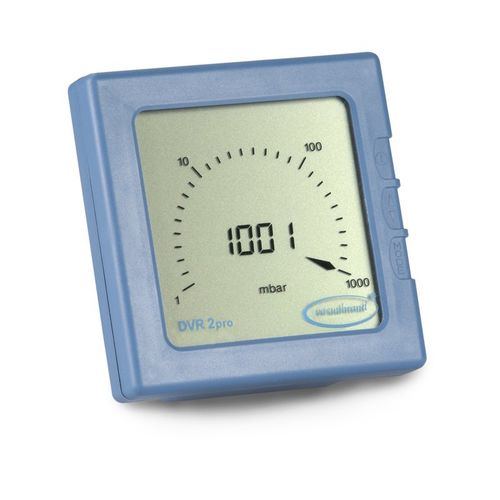

Laboratory vacuum meter DVR 2pro

analogdigital

Overview

• Improved menu functions for energy saving and extended battery life
• Large graphical analog display combined with digital readout for trend detection and precise reading
• User-selectable pressure units (mbar, hPa, Torr) to avoid conversions
• Multiple vacuum connections and included support rod for flexible laboratory mounting
• Chemically resistant wetted parts and capacitive ceramic diaphragm sensor for long-term stability and high accuracy

Product description
The DVR 2pro is a fully electronic, versatile vacuum gauge for measurements from atmospheric pressure down to 1 mbar. All wetted parts are made from chemically resistant materials suitable for demanding laboratory environments. The instrument combines a large graphical analog display with digital values to show trends and allow accurate readings. The pro version features a rear 9 V battery compartment for easy replacement and a wider range of connection fittings for flexible laboratory use. Items supplied include the vacuum gauge with integrated sensor, 9 V alkaline battery, support rod, connection parts and manual.

Technical data and graphs (table)
Upper measuring limit (mbar/hPa): 1060 mbar
Upper measuring limit (torr): 795 torr
Lower measuring limit (mbar/hPa): 1 mbar
Lower measuring limit (torr): 1 torr
Measurement principle: Ceramic diaphragm (alumina), capacitive, gas independent, absolute pressure
Accuracy of measurement: < +- 1 mbar/hPa/torr / +- 1 digit (after adjustment, constant temperature)
Temperature coefficient: < 0.15 mbar/hPa / 0.11 torr /K
Vacuum connection: Small flange KF DN16, PTFE tubing connection 10/8 mm, hose nozzle DN 6/10 mm
Storage temperature: -10 °C to 60 °C
Operating temperature: 10 °C to 40 °C
Max. media temperature (continuous): 40 °C
Max. media temperature (short term): 80 °C
Automatic switch-off: User-selectable 1–600 min or continuous operation (default 5 min)
Measurement cycle: User-selectable: Automatic, 1× per 3 s, 1× per 1 s, 3× per 1 s
Protection class (IEC 60529): IP 40 (front side rating: 6)
Power supply: 9 V battery
Weight: 0.4 kg
Dimensions (L×W×H): 115 × 115 × 90 mm
Vacuum sensor: Integrated
Typical battery lifetime: approx. 4,000 h (stand-by up to 30,000 h)
NRTL certification: No

Technical features / specifications

• Measuring range: atmospheric pressure down to 1 mbar (1 torr)
• Measurement principle: capacitive ceramic diaphragm (alumina), gas independent, absolute pressure
• Display: large graphical analog display plus digital values
• Accuracy: < ±1 mbar/hPa/torr ±1 digit (after adjustment, constant temperature)
• Connections: KF DN16, PTFE tubing 10/8 mm, hose nozzle DN 6/10 mm
• Power: 9 V alkaline battery; rear battery slot for easy replacement
• Housing: chemically resistant robust plastic with good long-term stability
• Operating temperature: 10 °C to 40 °C; storage: -10 °C to 60 °C
• Dimensions (L×W×H): 115 × 115 × 90 mm; weight: 0.4 kg
• Typical battery lifetime: approx. 4,000 h (stand-by up to 30,000 h)
