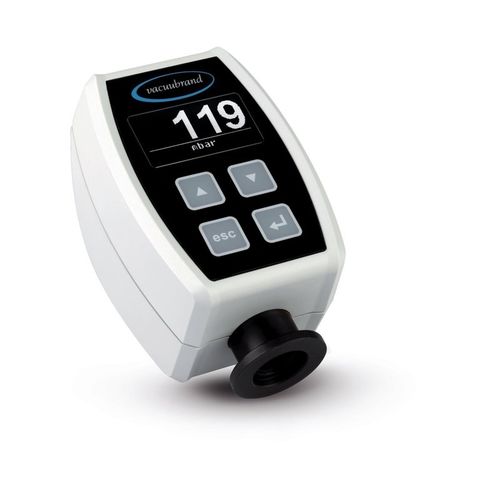

Laboratory vacuum meter VACUU·VIEW1100

digitalcompact

Overview

• High-precision vacuum gauge for processes from atmosphere down to 0.1 mbar, suitable for rough vacuum applications
• Compact housing with integrated ceramic diaphragm sensor for convenient laboratory and process installation
• Chemically resistant alumina diaphragm, capacitive measurement principle — gas-independent absolute pressure reading
• Illuminated, menu-driven display for easy reading and unit selection

Description
The VACUU·VIEW1100 vacuum gauge is designed to monitor rough-vacuum processes with reliable, gas-independent pressure measurement. Its capacitive ceramic-diaphragm sensor provides stable readings in chemically aggressive environments. The compact, chemically resistant plastic housing and integrated sensor enable quick installation and immediate operation in laboratory and process setups.

Technical data
Upper measuring limit: 1100 mbar (825 torr)
Lower measuring limit: 0.1 mbar (0.075 torr)
Measurement principle: Ceramic (alumina) diaphragm, capacitive, absolute pressure, gas independent
Accuracy: < ±1 mbar / ±1 digit (after adjustment, constant temperature)
ATEX: II 3/- G Ex h IIC T4 Gc X (internal atmosphere only)
Temperature coefficient: < 0.07 mbar / 0.05 torr / K
Vacuum connection: KF DN16 flange and hose nozzle DN6/10 mm
Ambient temperature (storage): -10 °C to 60 °C
Ambient temperature (operation): 10 °C to 40 °C
Max. media temperature (continuous): 40 °C; short term: 80 °C
Housing material: Chemically resistant plastic
Protection: IP54 (front), UL50E Type 5
Weight: 0.19 kg
Dimensions (L x W x H): 50 mm x 62 mm x 103 mm
Cable length: 2 m
NRTL certification: Yes

Items supplied
VACUU·VIEW1100 gauge with integrated sensor, hose nozzle kit DN6/10 mm, wall-plug power supply (region-specific plug) and manual.

Technical specifications

• Model: VACUU·VIEW1100 (SKU: 20683220)
• Measuring range: atmosphere to 0.1 mbar (0.075 torr)
• Upper limit: 1100 mbar (825 torr)
• Measurement principle: Alumina ceramic diaphragm, capacitive, absolute
• Accuracy: < ±1 mbar / ±1 digit (after adjustment, constant temperature)
• Connections: KF DN16 flange and hose nozzle DN6/10 mm
• Housing: Chemically resistant plastic
• Protection: IP54 (front), UL50E Type 5
• Operating temperature: 10 °C to 40 °C; storage: -10 °C to 60 °C
• Max. media temperature: 40 °C continuous, 80 °C short term
• Cable: 2 m
• Weight: 0.19 kg
• Certifications: ATEX (II 3/- G Ex h IIC T4 Gc X internal atm. only), NRTL
