Digital vacuum regulator 20700101

continuous

Overview

• Complete package for fine vacuum control in chemical laboratories, continuous control from 5 mbar to 1 x 10^-3 mbar.
• Application-based graphical user interface with predefined applications and an application editor.
• VSP 3000 Pirani thermal-conductivity sensor with chemically resistant plastic/ceramic construction.
• Includes chemical-resistant inline isolation solenoid valve VV-B 15C and KF DN 16 connections.
• VACUU·BUS automatic configuration; Ethernet (Modbus TCP), USB and RS-232 interfaces.

Product details

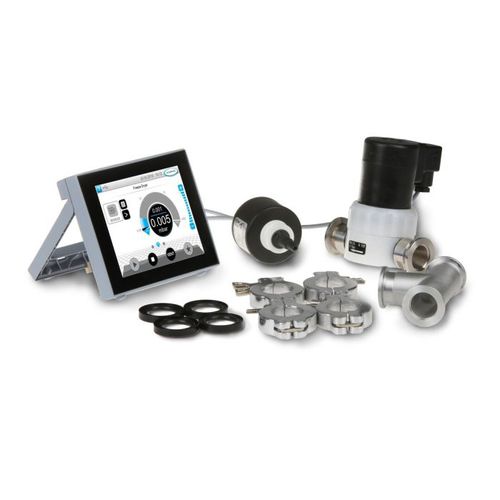

The VACUU·SELECT fine vacuum control package comprises the VACUU·SELECT controller with VSP 3000 sensor, inline solenoid valve VV-B 15C (KF DN 16), T-piece KF DN 16, hose nozzle DN 10 mm (PP), clamping and sealing rings, power supply and manual. The KF DN 16 configuration is compatible with rotary vane pumps RE/RZ 2.5 to RE/RZ 6 and the HYBRID pump RC 6. The controller provides continuous process control and allows modification or creation of applications to optimise process conditions.

Technical data

• Control range: 5 mbar to 1 x 10^-3 mbar
• Measurement range (display): 1000 mbar to 1 x 10^-3 mbar
• Sensor: VSP 3000 (Pirani thermal conductivity, plastic/ceramic)
• Measurement accuracy: ±15% (0.01–5 mbar)
• Vacuum connection: KF DN 16 / hose nozzle DN 10 mm
• Interfaces: Ethernet (Modbus TCP), USB Type A, RS-232 (adapter required)
• VACUU·BUS: 24 V DC, max. current 4 A; connection cable 2 m
• Operating temperature: 10 °C to 40 °C; storage: -10 °C to 60 °C
• Dimensions (L×W×H): 152 × 127 × 41 mm; Weight: 0.6 kg

Items supplied

• VACUU·SELECT controller with VSP 3000 and power supply
• Inline solenoid valve VV-B 15C KF DN 16
• T-piece KF DN 16
• Hose nozzle DN 10 mm (PP), clamping and sealing rings
• Manual
