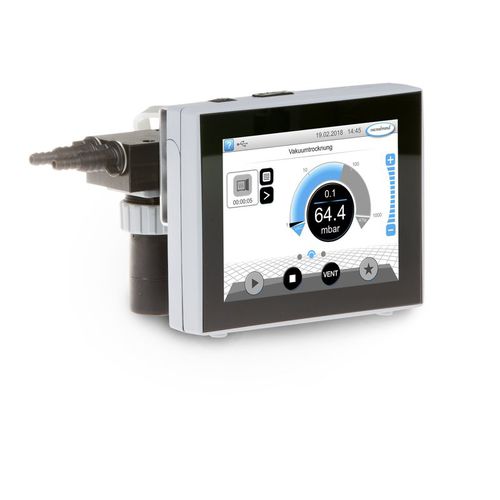

Rail-mounted vacuum regulator VACUU·SELECT

Overview

• Complete, ready-to-use vacuum controller for scaffold mounting with integrated solenoid isolation valve and standard hose connections
• Predefined vacuum applications and automatic boiling point detection for solvent evaporation
• Inline installation between pump and vacuum application; integrated venting valve supports inert gas connection
• Integrated check valve minimizes interaction with other applications on the same vacuum supply
• Ceramic diaphragm sensor with two-point control maintains stable process pressure

Product details
The VACUU·SELECT complete controller increases process efficiency for applications served by a vacuum source such as a standalone pump or a vacuum network. Operate with manual set-point control for straightforward tasks, run predefined applications at the touch of a button, or create and edit custom applications via drag-and-drop. The unit is available as a benchtop model, a scaffold-mounted version or an inset version for lab casework. The integrated compact assembly includes the VACUU·SELECT vacuum controller, a chemical-resistant solenoid isolation valve, an integrated check (non-return) valve and a ceramic diaphragm vacuum sensor with venting valve. Compact and easy to install, VACUU·SELECT provides an intuitive, application-based user interface. For solvent evaporation it detects boiling pressure and holds the pressure stable using two-point control.

Technical data and graphs

• Product type / commercial name: VACUU·SELECT
• Article number: 20700080
• Measurement range: 1080 mbar down to 0.1 mbar (0.1 torr)
• Control range: 1080 mbar to 1 mbar (810 torr to 1 torr)
• Sensor: ceramic diaphragm (alumina), capacitive, gas independent, absolute pressure
• Accuracy of measurement: < ±1 mbar/hPa/torr ±1 digit (after adjustment, constant temperature)
• Vacuum connections: hose nozzle DN 6/10 mm; venting valve hose nozzle DN 4-5 mm
• Interfaces: Ethernet (RJ45) Modbus TCP; USB (Type A) for data transfer/software update; RS-232 (adapter required)
• Power / bus: VACUU·BUS max. current 24 V DC: 4 A; cable length 2 m
• Operating temperature: 10 °C to 40 °C (storage: -10 °C to 60 °C)
• Max. media temperature continuous/short term: 40 °C / 80 °C
• Material housing: robust plastic with good chemical resistance; solenoid valve in PVDF/fluoroplastics
• Protection class: overall IP40 / front IP41; UL50E Type 1 (overall), Type 2 (front)
• Dimensions (L×W×H): 152 × 127 × 188 mm
• Weight: 2 kg
• Certifications: NRTL certified; ATEX II 3/- G Ex h IIC T4 Gc X (internal atmosphere only)

Items supplied
VACUU·SELECT complete controller for scaffold mounting with solenoid isolation valve, non-return valve, integrated ceramic diaphragm vacuum sensor and venting valve. Supplied with power supply, connection cable and manual; ready to use.
