Integrated vacuum regulator VACUU·SELECT
digital

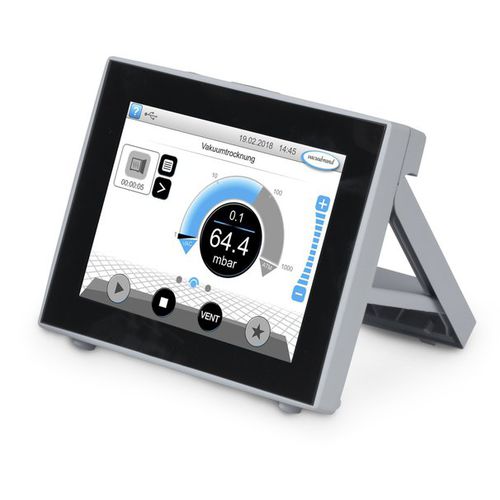

Integrated vacuum regulator - VACUU·SELECT - Vacuubrand - digital
Integrated vacuum regulator - VACUU·SELECT - Vacuubrand - digital
Add to favorites
Compare this product
Go to the Vacuubrand website for more information

Characteristics

Connection type
integrated
Other characteristics
digital

Description

Overview
  • VACUU·SELECT by VACUUBRAND is an application-based vacuum controller with a touchscreen display for laboratory-scale vacuum processes. Select and start a predefined application or build your own via drag-and-drop; the controller manages the vacuum process to completion and reduces operator intervention.
  • Supports manual set-point control, fully automated distillations and customized application workflows. During solvent evaporation VACUU·SELECT detects boiling points and adapts the vacuum profile as required.


Key features / benefits
  • Precise VARIO® control via motor speed adjustment in combination with VARIO diaphragm pumps.
  • Classic two-point vacuum control using an in-line solenoid valve — can function as a two-point controller for existing vacuum sources or as a complete VACUU·SELECT controller.
  • Graphical user interface with application-oriented operation simplifies laboratory workflows and saves time.
  • Predefined applications ensure quick startup and reproducible results; built-in application editor allows easy customization of vacuum setpoints and process steps.


Delivery contents
  • VACUU·SELECT vacuum controller with sensor.
  • Integrated venting valve and power supply.
  • VACUU·BUS® extension cable, 2 m.
  • Power input 100–230 V / 50–60 Hz, plugs CEE/CH/UK/US/AUS depending on version.


Technical specifications
  • Measurement limit (upper): 1080 mbar (810 torr).
  • Measurement limit (lower): 0.1 mbar (0.1 torr).
  • Control limit (upper): 1080 mbar (810 torr).
  • Control limit (lower): 1 mbar (1 torr).
  • Measuring principle: alumina ceramic membrane, capacitive, gas-independent, absolute measurement.
  • Measurement accuracy: < ±1 mbar/hPa/torr / ±1 digit (after adjustment, at constant temperature).
  • Pressure sensor: VACUU·SELECT Sensor.
  • Temperature drift: < 0.15 mbar/hPa / 0.11 torr /K.
  • Control connections: small KF flange DN 16, PTFE tubing connection 10/8 mm, nozzle DN 6/10 mm.
  • Venting valve: integrated barbed fitting, nozzle DN 4–5 mm.
  • Storage temperature: -10 °C to 60 °C.
  • Operating temperature: 10 °C to 40 °C.
  • Max. fluid temperature continuous: 40 °C (short peak: 80 °C).
  • Housing material: chemically resistant plastic.
  • Protection class: IP 40 (front IP 41).
  • UL50E rating: Type 1 (front Type 2).
  • Dimensions (L x D x H): 152 mm x 127 mm x 41 mm.
  • Weight: 0.745 kg.
  • Max. switching power/current (24 V / VACUU-BUS): 4 A.
  • Connection cable length: 2 m.
  • Interfaces: Ethernet (RJ45) - Modbus TCP; USB Type A for data transfer and software updates; RS-232 via optional adapter.
  • Certifications: NRTL (Yes); ATEX: II 3/- G Ex h IIC T4 Gc X (Internal Atmosphere only).


Applications & compatibility
  • Designed for solvent evaporation, distillation and other laboratory vacuum applications.
  • Can be used as a standalone controller or integrated into existing vacuum setups; compatible with VARIO diaphragm pumps and VACUU·BUS accessories.
