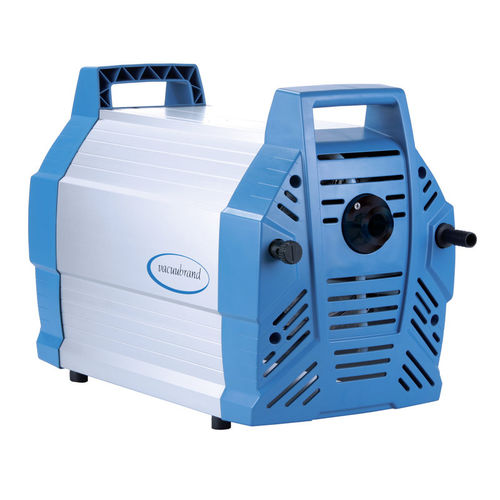

Laboratory vacuum pump MV 10C NT

diaphragmmulti-stageoil-free

Overview

• Outstanding chemical resistance and superior vapor tolerance
• High pumping speed reduces process time even near ultimate vacuum
• Very low vibration and low noise
• Good ultimate vacuum even with gas ballast
• Efficient solvent recovery option (EK) for improved environmental performance

Description
Four-stage chemical-design, oil-free diaphragm pumps provide continuous pumping of corrosive gases and vapors while meeting high ultimate vacuum requirements. The MV 10C NT features an eight-head, four-stage arrangement that combines high pumping speed with a low ultimate vacuum of 0.9 mbar in a compact footprint. All wetted internal components are made from chemically resistant fluoroplastics. PTFE sandwich diaphragms and PTFE valves extend service life and reliability. With the exhaust waste vapor condenser (EK) the MV 10C NT +EK enables efficient solvent recovery. An optional inlet separator (AK) with glass flask (protective coating) protects against particles and liquid droplets.

Key product details
Ultimate vacuum: 0.9 mbar
Ultimate vacuum with gas ballast: 1.5 mbar
Max. pumping speed 50 Hz: 9.5 m3/h

Technical data and graphs
Max. pumping speed 50 Hz: 9.5 m3/h
Max. pumping speed 60 Hz: 5.6 cfm
Ultimate vacuum: 0.9 mbar / 0.68 torr
Ultimate vacuum with gas ballast: 1.5 mbar / 1.1 torr
Number of heads: 8
Number of stages: 4
Operating ambient temperature: 10 °C to 40 °C
Storage temperature: -10 °C to 60 °C
Max. back pressure (abs.): 1.1 bar
Inlet connection: KF DN 25 small flange
Outlet connection: Hose nozzle DN 15 mm
Rated motor power: 0.53 kW
Rated motor speed 50/60 Hz: 1650 min-1
Protection class IEC 60529: IP 40
Dimensions L x W x H: 533 × 260 × 359 mm
Weight: 28.1 kg
Noise (sound pressure level) at 50 Hz: 50 dBA
ATEX: II 3/- G Ex h IIC T3 Gc X (Internal Atmosphere only)
Rated mains voltage range: 200-230 V
Mains frequency: 50-60 Hz

Accessories / Options

• Exhaust waste vapor condenser (EK) for solvent recovery
• Inlet separator (AK) with glass flask (protective coating) for particles and liquid droplets
• Various plug types (CEE, UK, US) and spare parts kits (diaphragms and valves)

Characteristics / technical specifications

• Design: Four-stage, eight-head oil-free diaphragm pump
• Materials in contact with pumped media: chemically resistant fluoroplastics
• Diaphragms: PTFE sandwich diaphragms for extended life and reliability
• Pumping speed (50 Hz): 9.5 m3/h
• Ultimate vacuum: 0.9 mbar (0.68 torr)
• Ultimate vacuum with gas ballast: 1.5 mbar (1.1 torr)
• Motor rating: 0.53 kW, 1650 min-1 (50/60 Hz)
• Inlet: KF DN 25; Outlet: Hose nozzle DN 15 mm
• Max. back pressure: 1.1 bar (abs.)
• Operating ambient temperature: 10 °C to 40 °C; Storage: -10 °C to 60 °C
• Protection class: IP 40
• Weight: 28.1 kg; Dimensions (L×W×H): 533 × 260 × 359 mm
• Noise level: 50 dBA (50 Hz)
• ATEX: II 3/- G Ex h IIC T3 Gc X (Internal Atmosphere only)
• Items supplied: Pump completely mounted, ready for use, with manual
