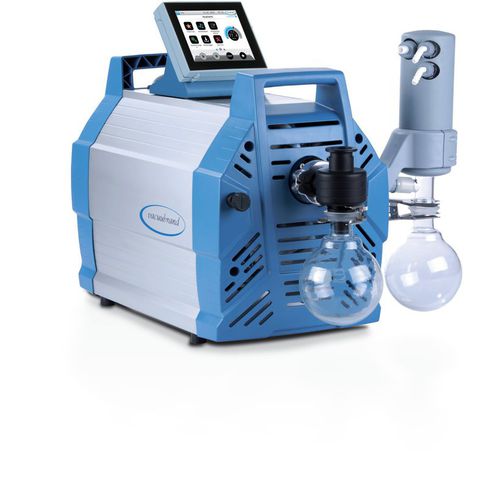

Laboratory vacuum pump PC 3010 NT VARIO select

for rotary evaporatorsdiaphragmoil-free

Overview

• VACUU·SELECT vacuum controller with graphical user interface and predefined applications for common laboratory tasks
• Automatic boiling point detection and automatic vacuum adjustment to shorten process times
• High pumping speed and low ultimate vacuum for evaporation of large quantities of high‑boiling solvents at low temperatures
• Oil‑free chemistry diaphragm design with long diaphragm life for reduced operating and maintenance costs
• Glass inlet separator with protective coating and exhaust vapor condenser for efficient solvent recovery

Product details
The PC 3010 NT VARIO select pumping unit precisely controls vacuum via the integrated VACUU·SELECT controller to deliver repeatable process results. Its combination of high pumping speed and fractional‑mbar ultimate vacuum makes it suitable for demanding laboratory and pilot‑plant applications, including floor‑standing rotary evaporators, vacuum drying ovens, distillation columns, miniplants and kilo‑labs. The controller provides manual set‑point control, fully automated distillation sequences and a drag‑and‑drop editor for custom procedures. During solvent evaporation the controller continuously detects the boiling point and adapts the vacuum automatically. The VARIO control algorithm adjusts motor speed to maintain the required vacuum while preventing bumping and foaming, reducing noise and extending maintenance intervals. The glass inlet separator with robust protective coating retains particles and droplets; the exhaust vapor condenser enables near‑complete solvent recovery when used with chilled water or a recirculating chiller. The pump unit is delivered fully assembled and ready for use, with manual.

Technical data
Max. pumping speed 50 Hz: 12.8 m3/h
Max. pumping speed 60 Hz: 7.5 cfm
Ultimate vacuum: 0.6 mbar / 0.45 torr
Ultimate vacuum with gas ballast: 1.2 mbar / 0.9 torr
Number of heads: 8
Number of stages: 4
Vacuum controller: VACUU·SELECT
Operating ambient temperature: 10 °C to 40 °C
Storage temperature: -10 °C to 60 °C
Max. back pressure (abs.): 1.1 bar
Inlet connection: small flange KF DN 25 / hose nozzle DN 15 mm
Outlet connection: hose nozzle DN 8-10 mm
Coolant connection: 2 × hose nozzle DN 6-8 mm
Rated motor power: 0.53 kW
Protection class IEC 60529: IP 40
Dimensions (L×W×H): 616 × 387 × 450 mm
Weight: 29.7 kg
Noise (sound pressure level) at 50 Hz: 47 dBA
ATEX: II 3/- G Ex h IIC T3 Gc X (internal atmosphere only)
NRTL certification: No
Rated mains voltage range: 200-230 V
Mains frequency: 50-60 Hz

Characteristics / specifications

• Model: PC 3010 NT VARIO select
• Controller: VACUU·SELECT (graphical UI, predefined applications, user application editor)
• Pumping principle: oil‑free chemistry diaphragm pump
• Pumping speed (50 Hz): 12.8 m3/h
• Pumping speed (60 Hz): 7.5 cfm
• Ultimate vacuum: 0.6 mbar (0.45 torr)
• Ultimate vacuum with gas ballast: 1.2 mbar (0.9 torr)
• Number of heads / stages: 8 / 4
• Rated motor power: 0.53 kW
• Connections: inlet KF DN 25 or hose DN 15 mm; outlet DN 8-10 mm; coolant 2× DN 6-8 mm
• Max. back pressure (abs.): 1.1 bar
• Operating ambient temperature: 10 °C to 40 °C
• Storage temperature: -10 °C to 60 °C
• Protection class: IP 40
• Dimensions (L×W×H): 616 × 387 × 450 mm
• Weight: 29.7 kg
• Sound pressure level (50 Hz): 47 dBA
• ATEX: II 3/- G Ex h IIC T3 Gc X (internal atmosphere only)
• Scope of delivery: pumping unit completely mounted, ready for use, with manual
