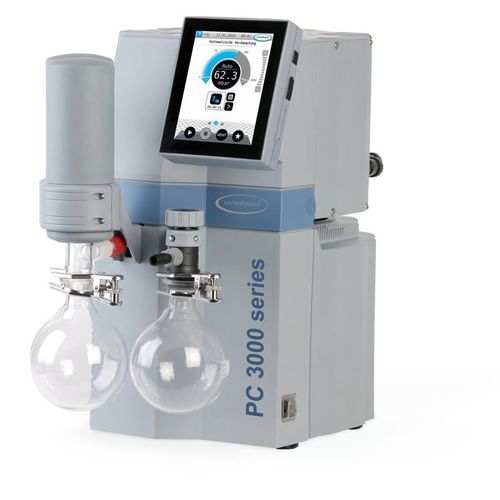

Laboratory vacuum pump PC 3003 VARIO select

diaphragmmulti-stage

Overview

• VACUU·SELECT vacuum controller with graphical UI and predefined applications for common laboratory tasks
• Automatic boiling point detection and adaptive vacuum adjustment for fast, reliable processes
• Designed for evaporation of high‑boiling solvents at low temperatures
• Chemically resistant diaphragm design for long service life and low maintenance
• Efficient solvent recovery via exhaust condenser supports economical recycling

Description
The PC 3003 VARIO select chemical diaphragm pumping unit provides precise vacuum control through variable‑speed management to deliver stable process conditions. The integrated VACUU·SELECT controller offers application‑based operation: manual set‑point control, fully automated distillations, and custom workflows via drag‑and‑drop. During solvent evaporation the controller continuously detects the boiling point and adjusts the vacuum to avoid bumping and foaming. The VARIO control algorithm maintains the required vacuum without unnecessary motor overspeed, reducing noise and extending maintenance intervals. The inlet separator is glass with a protective coating to retain particles and droplets. When connected to chilled water or a recirculating chiller, the exhaust condenser enables near‑complete solvent recovery, reducing emissions and operating costs.

Product details

• Ultimate vacuum: 0.6 mbar (0.45 torr)
• Ultimate vacuum with gas ballast: 1.5 mbar (1.12 torr)
• Max. pumping speed (50 Hz): 2.8 m³/h

Technical data
Max. pumping speed 50 Hz: 2.8 m³/h
Max. pumping speed 60 Hz: 1.65 cfm
Ultimate vacuum: 0.6 mbar / 0.45 torr
Ultimate vacuum with gas ballast: 1.5 mbar / 1.12 torr
Number of heads: 4
Number of stages: 4
Vacuum controller: VACUU·SELECT
Rated motor power: 0.53 kW
Protection class: IP 20
Dimensions (L × W × H): 419 × 243 × 457 mm
Weight: 21.1 kg
Noise level (50 Hz): 43 dBA
Interfaces: Ethernet (RJ45) Modbus TCP, USB Type A, optional RS‑232 adapter

Characteristics / specifications

• Model: PC 3003 VARIO select (VARIO®)
• Pumping technology: multi‑head, 4 heads / 4 stages chemical diaphragm design
• Controller: VACUU·SELECT (graphical UI, predefined apps, automatic boiling point detection)
• VARIO speed control to avoid overspeed, bumping and foaming
• Inlet glass separator with protective coating
• Exhaust vapor condenser for near‑complete solvent recovery
• Rated mains voltage: 200–230 V, 50–60 Hz
