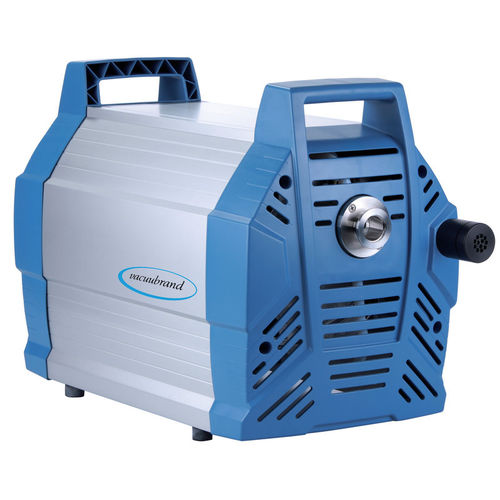

Laboratory vacuum pump MV 10 NT

diaphragmdouble-diaphragmmulti-stage

Overview

• Contamination-free pumping and evacuation
• High performance even close to the ultimate vacuum
• Whisper-quiet operation
• Very low vibration
• Long diaphragm life and maintenance-free drive

Product description
Four-stage diaphragm pump designed for continuous, oil-free pumping of gases down to fractional millibar ultimate vacuums. All wetted parts are made of aluminum, stainless steel and selected plastics suitable for a wide range of non-corrosive applications. The pump combines high pumping speed with an excellent ultimate vacuum (down to 0.5 mbar). Highly flexible, fabric-reinforced double diaphragms made of FKM extend service life. The 8-head NT design provides quiet operation and smooth, easy-to-clean external surfaces.

Key product details

• Ultimate vacuum: 0.5 mbar
• Max. pumping speed (50 Hz): 10.4 m³/h
• Configuration: 8 heads, 4 stages

Technical specifications

• Max. pumping speed 50 Hz: 10.4 m³/h
• Max. pumping speed 60 Hz: 6.1 cfm
• Ultimate vacuum: 0.5 mbar / 0.38 torr
• Number of heads: 8
• Number of stages: 4
• Operating ambient temperature, lower limit: 10 °C
• Operating ambient temperature, upper limit: 40 °C
• Storage temperature, lower limit: -10 °C
• Storage temperature, upper limit: 60 °C
• Max. back pressure (abs.): 1.1 bar
• Inlet connection: small flange KF DN 25
• Outlet connection: G1/2"
• Rated motor power: 0.53 kW
• Rated motor speed (50/60 Hz): 1650 min⁻¹
• Protection class (IEC 60529): IP 40
• Dimensions L x W x H: 554 x 260 x 359 mm
• Weight: 30.2 kg
• Noise (sound pressure level) at 50 Hz: 50 dBA
• ATEX conformity: II 3/- G Ex h IIC T3 Gc X (internal atmosphere only)
• NRTL certification: No
• Items supplied: pump completely mounted, ready for use; silencer; manual
• Rated mains voltage range (1): 200-230 V
• Mains frequency (1): 50-60 Hz
• Article no.: 20744000
