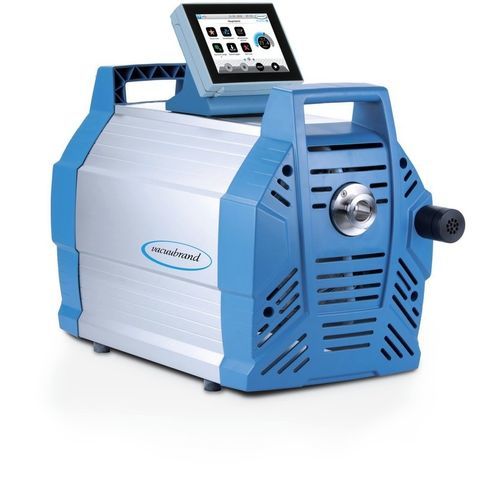

Laboratory vacuum pump MV 10 NT VARIO select

diaphragmdouble-diaphragmmulti-stage

Overview

• VACUU·SELECT vacuum controller with graphical user interface and predefined applications simplifies work in the laboratory
• Extraordinary diaphragm life for minimum operational and servicing costs
• Contamination-free pumping and evacuation (oil-free)
• High pumping speed, extraordinary ultimate vacuum and TURBO·MODE for use as backing pump for turbo pumps

Key product details

• Ultimate vacuum: 0.3 mbar
• Max. pumping speed 50 Hz: 12.1 m³/h

Description
Four-stage diaphragm pumps like the MV 10 NT VARIO select are reliable solutions for continuous, oil-free pumping of non-corrosive gases to very low vacuum levels. With its high pumping speed this pump is suitable for higher gas load applications or rapid pump down of vacuum chambers. All wetted parts are made of aluminum, stainless steel and selected plastics appropriate for a wide range of non-corrosive gas applications. The MV 10 NT VARIO select automatically adapts motor speed to maintain the desired vacuum level, resulting in quiet operation with ultra-low vibrations and high tightness. The fabric-reinforced double FKM diaphragm provides extended operating life. The VARIO® design comprises the variable-speed pump and the VACUU·SELECT® vacuum controller with external gauge head. Demand-responsive motor speed control on VARIO® models further extends diaphragm and valve lifetimes. Oil-free operation eliminates the risk of contamination from backstreaming.

Technical specifications

• Max. pumping speed 50 Hz: 12.1 m³/h
• Max. pumping speed 60 Hz: 7.1 cfm
• Ultimate vacuum: 0.3 mbar / 0.2 torr
• Number of heads: 8
• Number of stages: 4
• Vacuum controller: VACUU·SELECT
• Lower ambient temperature (operation): 10 °C
• Upper ambient temperature (operation): 40 °C
• Lower ambient temperature (storage): -10 °C
• Upper ambient temperature (storage): 60 °C
• Max. back pressure (abs.): 1.1 bar
• Inlet connection: small flange KF DN 25
• Outlet connection: G1/2"
• Rated motor power: 0.53 kW
• Protection class IEC 60529: IP 40
• Dimension L: 552 mm
• Dimension B: 260 mm
• Dimension H: 450 mm
• Weight: 31.6 kg
• Noise (sound pressure level) at 50 Hz: 50 dBA
• ATEX conformity: II 3/- G Ex h IIC T3 Gc X (Internal Atmosphere only)
• NRTL certification: No
• Items supplied: Pump completely mounted, ready for use, silencer, manual
• Rated mains voltage range: 200-230 V
• Mains frequency: 50-60 Hz
• Interface: Ethernet (RJ45): Modbus TCP; USB (Type A): Data transfer, software update; RS-232 (additional adapter required)
