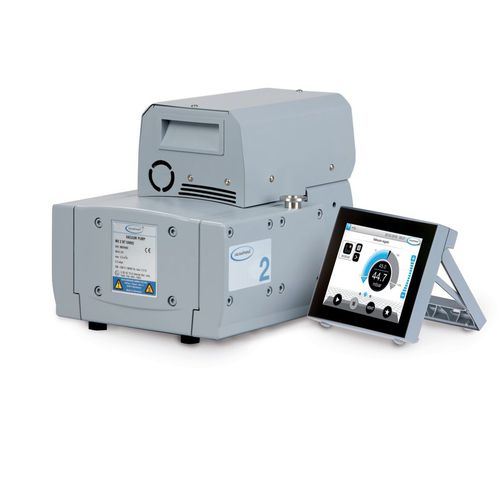

Laboratory vacuum pump MV 2 VARIO select

double-diaphragmdiaphragmmulti-stage

Overview

• VACUU·SELECT vacuum controller with graphical user interface and predefined applications simplifies laboratory workflows
• Automatic boiling point detection and vacuum adjustment to shorten process times
• Extended diaphragm lifetime for reduced operating and maintenance costs
• Contamination-free, oil-free pumping and evacuation
• Excellent ultimate vacuum; improved ultimate vacuum in VARIO® TURBO·MODE for use as backing pump for turbo pumps

Product description
Four-stage oil-free diaphragm pump designed for continuous pumping of non-corrosive gases at fractional millibar vacuum levels. Wetted parts are aluminium, stainless steel and selected plastics suitable for a wide range of applications. The MV 2 VARIO select continuously adapts motor speed to maintain the required vacuum, providing very quiet operation, ultra-low vibrations and high leak tightness. The fabric-reinforced double FKM diaphragm delivers extended service life. The VARIO® design combines the variable-speed pump with the VACUU·SELECT vacuum controller (external gauge head); demand-responsive motor speed control further extends diaphragm and valve lifetimes.

Technical data

• Max. pumping speed (50 Hz): 3.3 m³/h
• Max. pumping speed (60 Hz): 1.9 cfm
• Ultimate vacuum: 0.3 mbar / 0.2 torr
• Number of heads / stages: 4 / 4
• Vacuum controller: VACUU·SELECT (graphical UI, predefined applications, automatic boiling point detection)
• Rated motor power: 0.53 kW
• Rated mains voltage: 200–230 V; Frequency: 50–60 Hz
• Inlet / outlet connections: KF DN 16 inlet; silencer / G1/4" outlet
• Max. back pressure (abs.): 1.1 bar
• Operating temperature range: 10 °C to 40 °C; Storage: -10 °C to 60 °C
• Protection class: IP 20 (IEC 60529)
• Dimensions (L × W × H): 325 × 235 × 245 mm
• Weight: 19.1 kg
• Noise (sound pressure level) at 50 Hz: 45 dBA
• Materials (wetted parts): aluminium, stainless steel, selected plastics
• Diaphragm: fabric-reinforced double FKM
• ATEX: II 3/- G Ex h IIC T3 Gc X (internal atmosphere only)
• Interfaces: Ethernet (RJ45) Modbus TCP; USB (Type A) data transfer & software update; RS-232 via adapter
• Items supplied: Pump assembled and ready for use, with manual
