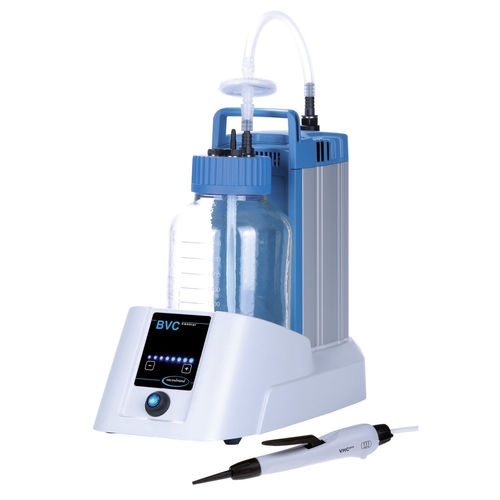

Plug-in type vacuum regulator BVC control G

intermittentdigitaldouble

Overview

• Chemistry diaphragm vacuum pump: chemically resistant and durable for general laboratory use
• Compact, low-noise design suitable for use at the workbench
• Electronically adjustable suction via touchpanel for sensitive or strong aspiration
• Autoclavable collection bottle designed to reduce aerosol and foam formation; hydrophobic 0.2 µm protection filter; autoclavable quick-couplings available as accessory
• Prepared to accept a second aspiration hand controller (VHCpro) for two users

Product description
The BioChem-VacuuCenter BVC control G is designed for efficient and reproducible aspiration of supernatants. The vacuum level and thus the suction force are precisely adjustable by the electronic touchpanel. The chemically resistant diaphragm pump switches on and off automatically according to demand to minimize noise. Two equipment variants are available: a 2 L borosilicate glass collection bottle with protective coating, or a 4 L unbreakable polypropylene (PP) bottle for larger volumes. Smooth surfaces facilitate cleaning. Items supplied: complete system with diaphragm pump, collection bottle, adjustable suction control via touchpanel, aspiration hand set VHCpro and protection filter; delivered ready for use with manual.

Technical data
Max. pumping speed 50 Hz: 0.7 m3/h (vacuum pump)
Max. pumping speed 60 Hz: 0.5 cfm (vacuum pump)
Ultimate vacuum: 150 mbar / 112 torr
Vacuum controller: Touchpanel
Control range: 150 - 850 mbar (adjustable)
Collection bottle: 2 L borosilicate glass (option: 4 L PP for larger volumes)
Max. back pressure (abs.): 1.1 bar
Inlet connection: Suction controller (handset)
Outlet connection: Hose nozzle DN 8 mm / silencer
Rated motor power: 0.04 kW
Rated motor speed (50/60 Hz): 1500 / 1800 min-1
Protection class (IEC 60529): IP 40
Weight: 8.1 kg
Noise (sound pressure level): 49 dBA
NRTL certification: No
Rated mains voltage: 230 V, 50-60 Hz

Applications

• Fluid aspiration and supernatant removal (laboratories, biotechnology, chemistry)

Technical specifications

• Model: BVC control G
• Pump type: Chemically resistant diaphragm vacuum pump
• Control: Electronic touchpanel, adjustable 150–850 mbar
• Collection bottle: 2 L borosilicate (coated) or 4 L polypropylene (PP) option
• Protection filter: Hydrophobic 0.2 µm
• Outlet: Hose nozzle DN 8 mm with silencer
• Rated power: 0.04 kW
• Rated speed: 1500 / 1800 min-1 (50/60 Hz)
• Protection class: IP40
• Weight: 8.1 kg
• Sound pressure level: 49 dBA
• Max. back pressure (abs.): 1.1 bar
• Supply: Complete system with VHCpro hand set, protection filter and manual
