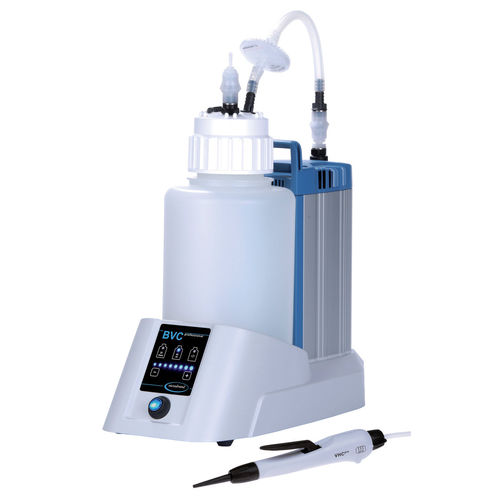

Laboratory suction system BVC professional

liquids

Overview

• with all the advantages of the BVC control
• non-contact sensor for electronic monitoring of the liquid level in the collection bottle
• disinfection routine for suction tubing to draw disinfectant after pump shutdown
• self-closing quick couplings (accessory for BVC professional G) for safe bottle changes when handling biohazards
• designed for professional use and integration into safety protocols

Product details
The BioChem-VacuuCenter BVC professional is a dedicated system for aspiration and disposal of biological fluids, engineered to meet laboratory and clinical safety requirements. A non-contact liquid level sensor provides electronic overfill protection. After pump shutdown the device can run a disinfection routine that draws disinfectant through the suction tubing and hand set, supporting strict decontamination protocols. The standard configuration includes a 4 L polypropylene collection bottle with self-closing quick couplings to reduce contamination risk during transport and disposal. The BVC professional G variant offers a coated 2 L borosilicate glass bottle for use with aggressive disinfectants.

Technical data

• Max. pumping speed (50 Hz): 0.7 m³/h (vacuum pump)
• Max. pumping speed (60 Hz): 0.5 cfm (vacuum pump)
• Ultimate vacuum: 150 mbar / 112 torr
• Control range: 150–850 mbar (adjustable)
• Vacuum controller: Touchpanel
• Collection bottle: 4 L polypropylene (option: coated 2 L borosilicate glass)
• Max. back pressure (abs.): 1.1 bar
• Inlet connection: suction hand set
• Outlet connection: hose nozzle DN 8 mm / silencer
• Rated motor power: 0.04 kW
• Rated speed (50/60 Hz): 1500 / 1800 min⁻¹
• Protection class (IEC 60529): IP40
• Weight: 7.7 kg
• Noise level (50 Hz): 49 dBA
• Rated mains voltage: 230 V, 50–60 Hz
• Items supplied: system with chemical diaphragm pump, collection bottle, touchpanel suction control, non-contact level sensor, quick couplings (4 L PP version), VHCpro aspiration hand set, protection filter, manual
