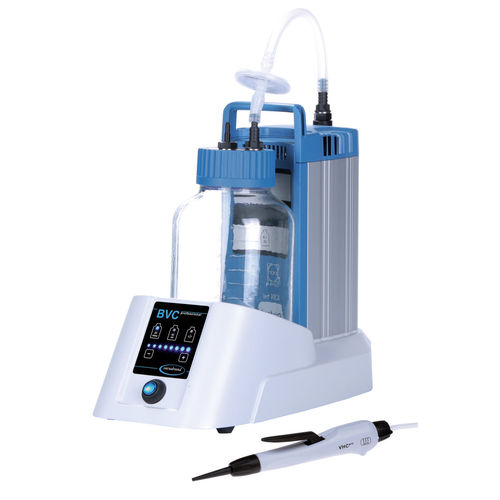

Suction pump BVC professional G

pneumaticfor liquids

Overview

• with all the advantages of the BVC control
• non-contact sensor for electronic monitoring of the liquid level in the collection bottle
• disinfection routine for the suction tubing to draw disinfectant after pump shutdown
• self-closing quick couplings (accessory for the BVC professional G) for safe and convenient bottle change
• designed for professional use and integration into institutional safety protocols

Description
The BioChem-VacuuCenter BVC professional G is a medical-grade fluid aspiration system for safe collection and disposal of biological fluids. It combines a chemical-resistant diaphragm pump, a touchpanel vacuum controller and a non-contact liquid level sensor that prevents overfilling. The integrated disinfection routine enables suction of disinfectants through the handset and tubing after pump shutdown to support decontamination workflows. The G version provides a coated 2 L borosilicate glass collection bottle for use with aggressive disinfectants; the standard 4 L PP bottle with self-closing quick couplings reduces risk during transport and disposal of contaminated waste.

Items supplied

• Complete fluid aspiration system with chemical diaphragm pump
• Collection bottle (2 L glass coated option or 4 L PP)
• Adjustable suction control via touch panel
• Non-contact liquid level sensor
• VHCpro aspiration handset
• Protection filter
• User manual

Technical data and graphs
Max. pumping speed 50 Hz: 0.7 m3/h (vacuum pump)
Max. pumping speed 60 Hz: 0.5 cfm (vacuum pump)
Ultimate vacuum: 150 mbar / 112 torr
Vacuum controller: Touchpanel
Control range: 150 - 850 mbar (adjustable)
Collection bottle: 2 L glass (coated option) or 4 L PP with self-closing quick couplings
Max. back pressure (abs.): 1.1 bar
Inlet connection: Suction controller
Outlet connection: Hose nozzle DN 8 mm / silencer
Rated motor power: 0.04 kW
Rated motor speed 50/60 Hz: 1500 / 1800 min-1
Protection class IEC 60529: IP 40
Weight: 8.1 kg
Noise level: 49 dBA
NRTL certification: No
Rated mains voltage: 230 V
Mains frequency: 50-60 Hz

Specifications

• Model: BVC professional G
• Intended use: Safe aspiration and collection of biological fluids
• Collection bottle options: 2 L coated borosilicate glass or 4 L PP with self-closing quick couplings
• Pump type: Chemical diaphragm pump
• Control: Touchpanel, adjustable vacuum 150–850 mbar
• Performance: 0.7 m3/h (50 Hz) / 0.5 cfm (60 Hz); ultimate vacuum 150 mbar
• Electrical: 0.04 kW, 230 V, 50–60 Hz
• Protection class: IP 40
• Weight: 8.1 kg
• Noise: 49 dBA

Notes
Follow institutional biosafety and hazardous-waste procedures. Documentation for safe disposal of used devices and accessories is available.
