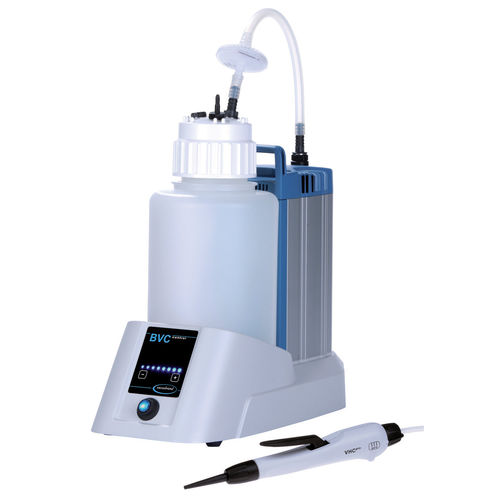

Laboratory suction system BVC control

aerosolliquidsautomatic

Overview

• Chemistry diaphragm pump: powerful, long-lasting and economical for general laboratory use
• Extremely compact, space-saving and low-noise design suitable for the workstation
• Electronically adjustable suction power via touch panel for strong or sensitive aspiration
• Autoclavable collection bottle designed to minimise aerosol and foam formation; hydrophobic protection filter 0.2 µm; autoclavable quick-couplings available as accessory
• Ready to accept a second aspiration hand controller (VHCpro) to support two users

Product description
The BioChem-VacuuCenter BVC control is intended for efficient and convenient aspiration of liquid supernatants. Vacuum level and thus suction force are precisely adjustable via the electronic touch panel, enabling sensitive and reproducible operation. The chemically resistant diaphragm vacuum pump switches on and off automatically as required, further reducing operating noise. The BVC control is available in two complete equipment options with different collection bottles: a 2 L borosilicate glass bottle with protective coating for high chemical resistance, and a 4 L unbreakable polypropylene bottle for larger volumes. Smooth exterior surfaces allow easy cleaning of the system.

Items supplied

• Fluid aspiration system complete with chemistry diaphragm pump
• Collection bottle (4 L PP or 2 L borosilicate option)
• Adjustable suction control via touch panel
• Aspiration hand set VHCpro and protection filter
• Ready for use with manual

Technical specifications

• Model: BVC control
• Brand: VACUUBRAND
• Max. pumping speed 50 Hz: 0.7 m³/h (vacuum pump)
• Max. pumping speed 60 Hz: 0.5 cfm (vacuum pump)
• Ultimate vacuum: 150 mbar / 112 torr
• Vacuum controller: Touchpanel
• Control range: 150 - 850 mbar (adjustable)
• Collection bottle: 4 L Polypropylene (option: 2 L borosilicate glass with protective coating)
• Max. back pressure (abs.): 1.1 bar
• Inlet connection: Suction controller / aspiration hand set
• Outlet connection: Hose nozzle DN 8 mm / silencer
• Rated motor power: 0.04 kW
• Rated motor speed (50/60 Hz): 1500 / 1800 min⁻¹
• Protection class (IEC 60529): IP 40
• Weight: 7.7 kg
• Noise (sound pressure level) at 50 Hz: 49 dBA
• Rated mains voltage: 230 V
• Mains frequency: 50-60 Hz
