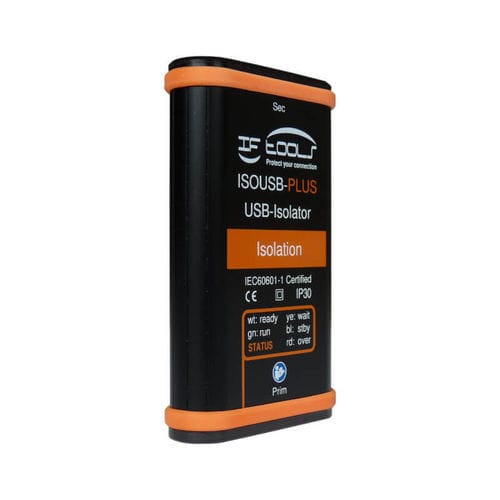

Medical device galvanic isolator ISOUSB-PLUS-BOX

ISOUSB-PLUS-BOX Isolator - The USB 2.0 full-speed isolator for medical devices. The certified ISOUSB-PLUS-BOX USB Isolator provides complete galvanic separation for all USB connections, effectively isolating standard PCs from critical or safety-sensitive applications. It withstands an isolation voltage of 5000 Vrms for 1 minute and 7500 V DC for 1 second under single isolation conditions. With reinforced insulation certified to 4000 Vrms for 1 minute according to EN 60601-1 Rev. 3.1, the isolator is ideally suited for medical environments and other sensitive applications. The device features a primary USB Type B input and a secondary USB Type A output, both equipped with high-retention connectors to ensure secure connections. The output is short-circuit protected, and any overload condition is indicated by a red LED, which simultaneously disables the output to prevent damage. Technical Information ISOUSB-PLUS-BOX Isolator - Isolation: Certified 4000 Vrms 1 min, reinforced isolation, 2*MOPP, permissible and tested with single isolation 5000 Vrms 1min, 7500 Vdc 1 sec. - Transmission rates: Full speed (12 MBits/s) - Transient protection: Integrated protective diodes with approval ±15 kV (acc. IEC-61000-4-2) - Max. cable length: prim/sec 5 m each side - Connectors: High retention force recesses USB sockets, prim: type B, sec: type A Conformity: - IEC60601-1: 2020 (Ed3.2), IEC60601-1-2: 2015 - IP30 Housing
