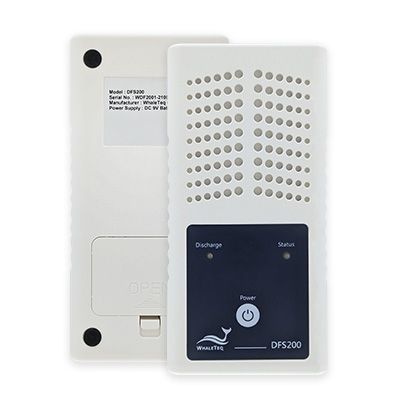

Load tester DFS200

voltagefor external defibrillatorsfor repairing medical devices

Overview
The DFS200 is a handheld AED tester for inspection and maintenance personnel. It performs comprehensive AED functional tests including defibrillation shock waveform identification, energy (joule) calculation and AED battery voltage measurement. The tester connects via Bluetooth to a dedicated mobile app for cloud-based maintenance management, enabling real-time tracking, test scheduling, data synchronization and communication between managers and field technicians. The device also supports fully standalone operation without a smartphone or network for flexible on-site use.

Features

• Defibrillation Test: identifies multiple defibrillation waveforms and computes delivered energy in joules; configurable adult and pediatric energy pass criteria.
• Multiple ECG Waveforms: offers various ECG waveforms for AED defibrillation simulation and supports custom waveform storage.
• AED Battery Measurement: integrated multimeter for battery voltage measurement, with capability to measure under load (optional probe).
• Standalone Mode: lightweight (330 g) portable unit able to perform basic tests without app or network; one-handed operation and pass/fail indicators based on custom thresholds.
• Custom Waveform Import: import and store user-defined waveforms for standalone testing and common ECG signals.

Highlights

• Bluetooth Low Energy connectivity and dedicated mobile app for remote control, test data saving and CMMS integration.
• Automatic saving of test records including shock energy (J), waveform traces, battery voltage and timestamps to build a test history.
• Optional PC software for rapid verification, waveform import and report generation.
• Portable, battery-powered standalone operation enables fast field verification without internet access.

Energy Measurement Specifications
Maximum Energy: up to 600 J
Voltage: up to 5000 Vp; accuracy ±(1% of reading + 2 V) typical
Load Resistance: 50 Ω
Pulse Width: 1.0–50.0 ms; accuracy ±0.1 ms
Maximum Average Power: 12 W (equivalent to one 360 J pulse every 30 s)
AED Battery Measurement (no load): 0.40–40.00 V; accuracy ±0.05 V for 5.00–40.00 V
AED Battery Measurement (with 200 mA load): 3.60–40.00 V; accuracy ±0.5 V for 3.60–40.00 V

General Specifications
Operating Temperature: 0°C–50°C (32°F–122°F)
Storage Temperature: -20°C–+60°C (-4°F–+140°F)
Humidity: 10%–90% non-condensing
Communications: Bluetooth Low Energy (BLE), USB Type-C
Operation Modes: Remote (APP) and Standalone
Power: 1 × 9V alkaline battery; battery level display and low power alert via APP
Mechanical: Housing: ABS plastic; Size (L × W × H): 17.0 × 8.55 × 4.0 cm; Weight: 330 g

Compliance Specifications
Safety Standards: IEC/EN 61010-1:2010 + A1:2016; 61010-2-030:2017 (Pollution degree 2)
EMC Standards: EN 61326-1; EN 301489-1 / EN 301489-17; FCC Part 15B
Other: RF EN 300328; EN 62311; NCC RF LP0002

Technical Specifications

• Model: DFS200
• Functionality: defibrillation waveform identification, joule calculation, ECG waveform generation, AED battery voltage measurement (optional probe/load)
• Maximum measurable energy: up to 600 J
• Voltage measurement range: up to 5000 Vp; accuracy ±(1% reading + 2 V)
• Pulse width: 1.0–50.0 ms (±0.1 ms)
• Battery: 1 × 9V alkaline; battery status displayed in APP
• Connectivity: Bluetooth Low Energy (BLE) and USB Type-C
• Mechanical: ABS housing; 17.0 × 8.55 × 4.0 cm; 330 g
• Operation modes: Bluetooth/APP remote control and standalone operation
• Compliance: CE and relevant IEC/EN and EMC standards as listed above
