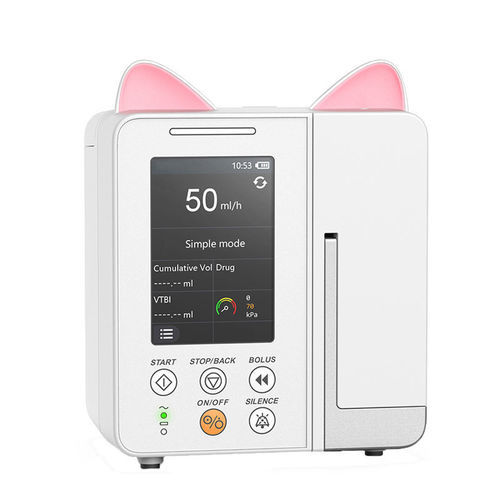

Veterinary infusion pump YSSY-VP6

for animalsminiportable

Veterinary Infusion Pump/Vet Hospital Clinic Touch Screen Veterinary Infusion Pump Model: YSSY-VP6 New Design Exquisite and mini, portable 3.5" Large colorful touch-screen and key-board, dual control methods. Simple and Convenient Auto-lock Screen The lock screen duration can be adjusted in multiple levels; prevention for operation errors. History Record Cassette Up to 50000pcs records. Trackable treatments are ensured. Night Mode Design for night time safe operation. System self-test System self-test is conducted every time turning on, safeguard for every-time use. Accurate and Safe Large capacity lithium battery IP44 High-level dust-proof and waterproof Configuration - Applicable Infusion Sets: 1ml/15d, 1ml/19d, 1ml/20d, 1ml/60d - Flow Rate (ml/h mode): 0.1~1200ml/h - BOLUS: 0.1~1200ml/h (in 0.01ml/h increments) - VTBI (Volume to be infused): 0.1~100ml (in 0.01ml increments) - FF rate: 0.1~1200ml/h (in 0.01ml/h increments) - VTBI: 0.1~9999.99ml (in 0.01ml increments) - Cumulative Infusion Volume: 0~9999.99ml (in 0.01ml increments) - Rate (ml/h) Accuracy: ≤±5% (after calibration) - Occlusion Pressure: 5 occlusion pressure levels (20, 50, 80, 110, 130) kPa - Dimensions: 131.5mm(L) x 101mm(W) x 163.8mm(H) Technical Specifications / Features - New design, mini and portable - 3.5" large colorful touch-screen and keyboard, dual control - Auto-lock screen with adjustable duration - History record cassette up to 50,000 records - Night mode for safe operation - System self-test on every startup - Large capacity lithium battery - IP44 dust-proof and waterproof - Applicable infusion sets: 1ml/15d, 1ml/19d, 1ml/20d, 1ml/60d - Flow rate: 0.1~1200ml/h - BOLUS: 0.1~1200ml/h (0.01ml/h increments) - VTBI: 0.1~9999.99ml (0.01ml increments) - Cumulative infusion volume: 0~9999.99ml (0.01ml increments) - Rate accuracy: ≤±5% (after calibration) - Occlusion pressure: 5 levels (20, 50, 80, 110, 130) kPa - Dimensions: 131.5mm x 101mm x 163.8mm
