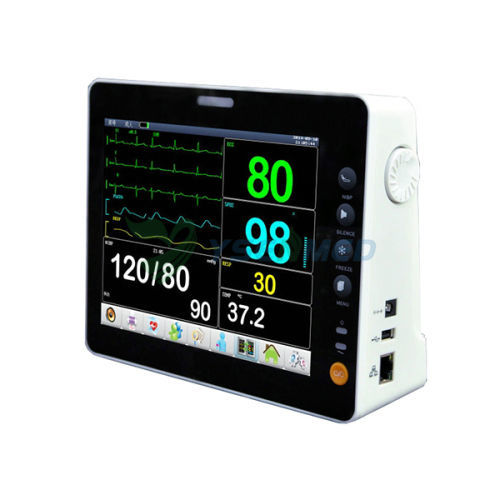

Portable multi-parameter monitor YSPM400V

ECGSpO2NIBP

Features: Body ·8.0 inchhigh-brightness TFT LED ·Support display maximum 8 waveforms ·Support 6 channel ECG waveform display simultaneously ·Optionaltouch screen Stroage ·Support storage of 168 hours trend table and graph review ·100 minutes waveform review ·500 groups NIBP review ·100 hours of parameter alarm events review and associated parameters Printer ·Built-in high-speed 50 mm thermal printer (Brand: SEIKO, Japan) Central System ·Optional:supporting wired or wireless connection to the central monitoring station. Alarm ·Three-level acousto-optic alarm ·Sensor-off alarm ·Paper out alarm ·Support alarm review ·Support alarm pause Operating System ·Multi-display mode to meet different clinical requirement, including standard interface, big font, OxyCRG, trend graph, NIBP review and full leads ECG interface. ·NIBP self-test mode: including overpressure test, static pressure test and air leakage test. ·15 types of Arrhythmia analysis and real-time S-T segment analysis and pacemaker detection ·Drug calculationand titration table ·Support multi-language display ·Support online software upgrading by net Interface Transducer socket ·ECG ·SPO2 ·NIBP ·TEMP 1 ·TEMP 2 / Mainstream EtCO2 ·Sidestream EtCO2 LAN / Central monitor system interface ·The LAN port is for connecting the monitor to a central monitor system network. Input device interface ·Knob (Standard) ·Touch screen (optional) Performance Specifications: Dimension and Weight - Dimension: 175mm*210mm*80mm -Weight:1.35kgexcluding accessories Power Supply - Adapter: Output 13-20V DC, 5A - Voltage: AC100240V, 50/60HZ Display - 8" color TFT LED - Resolution: 800*600 pixels Battery (Pluggable) - Type: Rechargeable lithium battery 14.8V/2200mAh - Charge Cycle: ≥500 times - Working time: 5.5 hours
