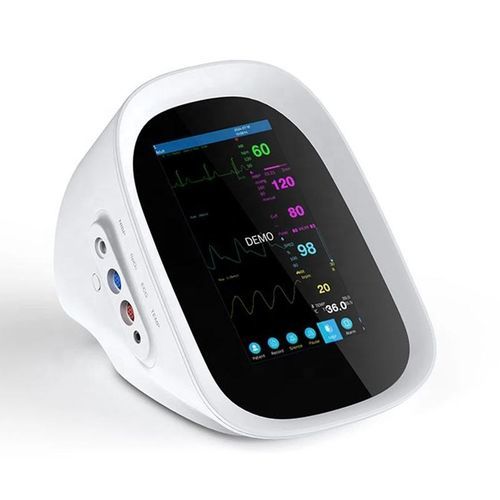

Portable vital signs monitor YSPM-PET5

ECGSpO2NIBP

Overview
Smart veterinary blood pressure and multi-parameter vital signs monitor for large and small animals. Model YSPM-PET5 features a 5.5-inch capacitive touchscreen, remote data transfer, anti-defibrillator/anti-ESU protection and rechargeable battery for continuous use in clinical and ambulatory veterinary settings.

Available configurations

• YSPM-PET5S: SpO2
• YSPM-PET5N: NIBP
• YSPM-PET5ST: SpO2 + TEMP
• YSPM-PET5: SpO2 + NIBP + TEMP
• YSPM-PET5P: SpO2 + NIBP + ECG + TEMP
• Optional: EtCO2 module, wireless printer

Main features

• 5.5-inch color capacitive touchscreen with intuitive UI
• Suitable for large and small animals
• Anti-defibrillator and anti-ESU protection; titration function available
• Multiple configurable parameter sets and optional modules
• Remote data transfer supporting iOS/Android app
• Rechargeable 4000 mAh lithium battery — continuous working time ~6 hours
• Interfaces: Type-C and Wi‑Fi

Technical specifications

• Model: YSPM-PET5
• Brand: YSENMED
• Main unit dimensions: 14 x 15 x 18 cm
• Weight: 0.6 kg
• Power supply: DC 5V 2A
• Display: 5.5" color LCD, resolution 1280 x 720
• Battery: rechargeable lithium 4000 mAh, 3.7 V; max charge time < 6 hours; working time approx. 6 hours
• Alarm: low/medium/high levels; auditory and visual indications; adjustable volume; alarm pause 2 minutes
• Input device: full capacitive touchscreen
• Interfaces: Type-C, Wi‑Fi (remote data transfer)
• Operating environment: 0 ~ 40°C; humidity 15% ~ 90% (non-condensing); atmospheric pressure 86 ~ 106 kPa
• Transport & storage: -20 ~ 50°C; humidity 10% ~ 90% (non-condensing); atmospheric pressure 86 ~ 106 kPa

Performance details

• Trend & review: NIBP reviewing 1500 groups; waveform review 3 hours / 600 groups; alarm events 1000 groups
• Respiration: impedance between RA–LL; gain x0.25, x0.50, x1, x2, x4; RR 0~120 / 0~150 BrPM; sweep speeds 6.25, 12.5, 25 mm/s; resolution 1 BrPM; apnea alarm 10~40 s
• Temperature: thermistor probe (2.25K / 10K); measuring range 0.0°C ~ 50°C; unit °C; resolution 0.1°C or 1°F; accuracy ±0.1°C (probe exclusive)
• ECG: 3/5 leads (I, II, III or I, II, III, aVR, aVL, aVF, V); gain X0.25 / X0.50 / X1 / X2; sweep speeds 6.25, 12.5, 25 mm/s; baseline recovery <3 s (monitor) <1 s (surgery); bandwidth Diagnostic 0.05~100 Hz, Monitor 0.5~40 Hz, Surgery 1~20 Hz
• Heart rate: large animal 15~300 bpm; small animal 15~350 bpm; accuracy 1% or 1 bpm; resolution 1 bpm
• SpO2: range 0~100%; resolution 1%; response modes Low/Medium/High; accuracy 70~100%: ±2% (<69% unspecified); supports pitch tone and multi-level volume
• Pulse rate: 25~250 bpm; accuracy ±3 bpm; resolution 1 bpm
• NIBP: pulse wave oscillation method; modes Manual, Auto, Continuous; auto intervals: 1,2,3,4,5,10,15,30,60,90,120,180,240,480 min; STAT mode cycle maintains 5 minutes
• NIBP ranges large animal: SYS 30~280 mmHg, DIA 10~220 mmHg, MEAN 20~240 mmHg; small animal: SYS 30~220 mmHg, DIA 10~160 mmHg, MEAN 20~170 mmHg
• Static pressure range 0~300 mmHg; static pressure accuracy ±3 mmHg; accuracy: maximum mean error ±5 mmHg; SD <8 mmHg; resolution 1 mmHg; over-pressure protection large animal 300 mmHg, small animal 240 mmHg
• EtCO2 (optional): NDIR method; range 0~19.7% (0~150 mmHg) / 0~20 kPa; resolution 0.1 mmHg; CO2 accuracy 0~40 mmHg ±2 mmHg; 41~70 mmHg ±5% reading; 71~100 mmHg ±8% reading; 101~150 mmHg ±10% reading (at 760 mmHg, 25°C); EtCO2 RR 3~150 BrPM; accuracy ±1 bpm
