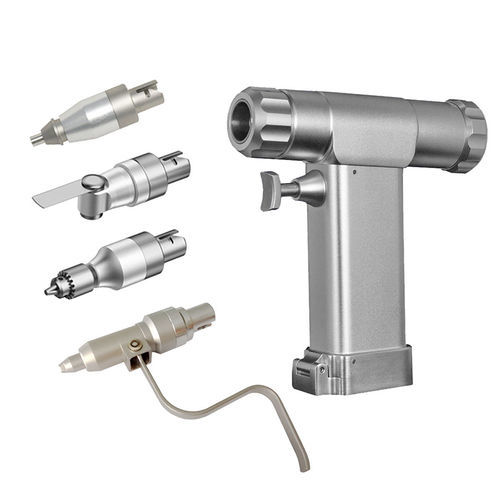

Mini Multi-functional Orthopedic System for sale with good price.
1. Specifications
- Hand Piece
- Working Voltage: 7.2V
- Output Power: ≥20W
- Unit rise in temperature: ≤25°C
- Charger
- Input Power: AC 220V, 50Hz
- Output Power: 7.2V, 900mA
- Input Power: 30VA
- Battery
- Voltage: 7.2V
- Charging time: About 3 hours
- Non-loading drill speed: ≥1100r/min
- Non-loading oscillating saw frequency: 18000rpm
- Non-loading noise: ≤ 75dB(A)
- Radial run-out: ≤ 0.5mm
2. Standard Configuration
- One hand piece
- One bone drill adapter (canulated)
- One oscillating saw adapter
- One small AO adapter
- One K wire adapter
- One charger
- Two 7.2V batteries
- Two aspetic battery transfer rings
- Two oscillating saw blades
- One drill chuck key
- One Aluminum case
3. Features
- New design, much more lighter, stable and safe than the old style.
- Adopt imported motor, widely compatibility
- Lower noise
- Light weight
- NI-MH battery
- Autoclavable
Additional Technical Specifications
- Quick chuck (bone drill) attachment: 0-1300 r/m, ≤60db, ≥1.6NM, ≤135 °C
- Sagittal saw attachment: 0-20000 osc/m, ≤70db, ≤135 °C
Key Features
- Mini multi-functional orthopedic system
- Stainless steel construction
- Electric powered bone drill and bone saw
- Designed for veterinary surgical and orthopedic procedures
- Rechargeable NI-MH battery
- Autoclavable components for sterilization
- Lightweight and low noise operation
Technical Specifications / Features (Summary)
- Hand Piece Working Voltage: 7.2V
- Hand Piece Output Power: ≥20W / ≥50W (depending on table)
- Unit Rise in Temperature: ≤25°C / ≤20°C
- Charger Input Power: AC 220V, 50Hz / AC 110V-240V, 50-60Hz
- Charger Output Power: 7.2V, 900mA
- Charger Input Power: 30VA / 30W
- Battery Voltage: 7.2V
- Battery Charging Time: About 3 hours / 2 hours or more
- Non-loading Drill Speed: ≥1100r/min
- Non-loading Oscillating Saw Frequency: 18000rpm
- Non-loading Noise: ≤75dB(A) / ≤60db / ≤70db
- Radial Run-out: ≤0.5mm
- Quick Chuck (Bone Drill) Attachment: 0-1300 r/m, ≥1.6NM, ≤135°C
- Sagittal Saw Attachment: 0-20000 osc/m, ≤135°C
- Sterilization Temperature: ≤135°C
