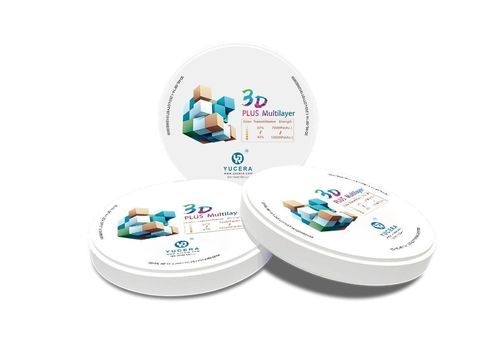

Zirconia dental material 3D Plus Multilayer

zirconiumZrO2zirconium dioxide

Overview
YUCERA 3D Plus is a multilayer zirconia block designed for CAD/CAM dental restorations. It reproduces a three‑dimensional gradient of color, translucency and strength to deliver natural-looking full-ceramic crowns, veneers and short-span bridges.

Key features

• Translucency gradient: approx. 57% (incisal) → 43% (cervical)
• Strength gradient: approx. 700–1050 MPa from incisal to cervical
• Color gradient: 15 levels; 6 stacked layers and 11 gradient layers

Aesthetic performance
Engineered to mimic enamel translucency at the incisal edge and increased opacity at the cervical area for masking substructure colors, enabling lifelike anterior restorations while maintaining appropriate occlusal properties.

Multilayer structure
6 stacked layers combined with 11 gradient levels provide a seamless color and translucency transition from incisal to cervical, supporting efficient CAM milling and minimal internal staining.

Advanced multilayer technology
Designed under the concept “Natural as real teeth”, 3D Plus controls translucency, hardness and flexural strength across the block thickness to balance aesthetics and durability for clinical use.

Layer structure

• Enamel layer: higher translucency at incisal edge and reduced hardness to protect antagonists.
• Middle layer: smooth transition of color, translucency and mechanical properties.
• Cervical layer: increased hardness and opacity for durability and masking.

Indications

• Anterior crowns
• Posterior crowns
• Veneers
• Bridges up to less than 7 units

Sintering guidance
Follow YUCERA standard sintering protocols. Typical examples by unit count:

• 1–5 UNIT
• 6–10 UNIT
• 11–14 UNIT

Shade / Thickness selection
4D Pro (colored zirconia block). Available shades: A1 A2 A3 A3.5 A4 B1 B2 B3 B4 C1 C2 C3 C4 D2 D3 D4 OM1 OM2 OM3
Thickness (mm): 10 12 14 16 18 20 22 25 30 35
Diameter (mm): 98 95 92*75

Technical specifications

• Brand: YUCERA
• Commercial name / model: 3D Plus Zirconia Block
• Layer structure: 6 stacked layers, 11 gradient layers
• Color gradient levels: 15
• Translucency: ~57% (incisal) → ~43% (cervical)
• Flexural strength / hardness range: approx. 700–1050 MPa (incisal → cervical)
• Processing: colored zirconia block; direct full sintering, no internal staining required
• Indications: anterior/posterior crowns, veneers, bridges <7 units
• Available shades and dimensions as listed above
