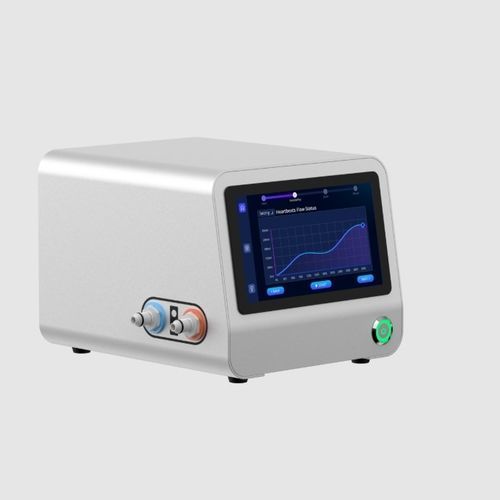

Medical simulation pump CS-S001

laboratoryhemodynamic simulationelectric

Description

• Product Name: Simulated Pulsatile Cardiac Pump (with water tank)
• Type / Model: CS-S001 pump
• Application: Medical simulation, surgical training and hemodynamics research

Overview
The CS-S001 Simulated Pulsatile Cardiac Pump reproduces left and right heart blood flow for bench-top medical simulation and laboratory studies. It reproduces pulsatile circulation and adjustable heartbeat profiles, and supports temperature control for tests requiring body-temperature conditions. The device generates sinusoidal and linear waveforms with full parameter control to replicate physiological flow patterns. It is compatible with water and blood‑mimicking fluids.

Product Highlights

• Adjustable heart rate and flow: 20–220 beats/min; maximum flow 2000 mL/min.
• Integrated temperature control: ambient to 99 °C, accuracy ±0.8 °C, resolution 0.1 °C.
• Customizable pulsatile waveforms: sinusoidal and linear shapes with full parameter adjustment.
• Compact test bench footprint: pump 204 × 180 × 260 mm; water tank 180 × 330 × 220 mm; tank volume 5 L; touchscreen control; DC motor drive.

Performance Specifications

• Heart Rate: 20–220 beats/min, adjustable
• Flow Rate: Maximum 2000 mL/min
• Control Method: Touchscreen interface
• Power Input (Pump): AC 110–240 V, 50–60 Hz
• Pulsatile Waveforms: Sinusoidal and linear, fully customizable
• Pump Dimensions: 204 × 180 × 260 mm
• Temperature Control Range: Ambient to 99 °C
• Fluid Medium: Water or blood‑mimicking fluid
• Volume (Tank): 5 L
• Water Tank Dimensions: 180 × 330 × 220 mm
• Power Input (Water Tank): AC 220 V, 50–60 Hz
• Temperature Accuracy: ±0.8 °C
• Temperature Resolution: 0.1 °C
• Drive Method: DC motor
• Outer Packaging Dimensions: 514 × 394 × 298 mm

Technical Specifications

• Model: CS-S001 pump
• Application: Cardiac simulation (left and right heart)
• Flow waveform: Sinusoidal and linear, fully customizable
• Heart rate range: 20–220 beats/min
• Max flow: 2000 mL/min
• Temperature range: Ambient to 99 °C
• Temperature accuracy / resolution: ±0.8 °C / 0.1 °C
• Fluid compatibility: Water and blood‑mimicking fluids
• Control: Touchscreen interface
• Volume (tank): 5 L
• Pump dimensions: 204 × 180 × 260 mm
• Water tank dimensions: 180 × 330 × 220 mm
• Power (pump): AC 110–240 V, 50–60 Hz
• Power (water tank): AC 220 V, 50–60 Hz
• Drive: DC motor
• Packaging dimensions: 514 × 394 × 298 mm
