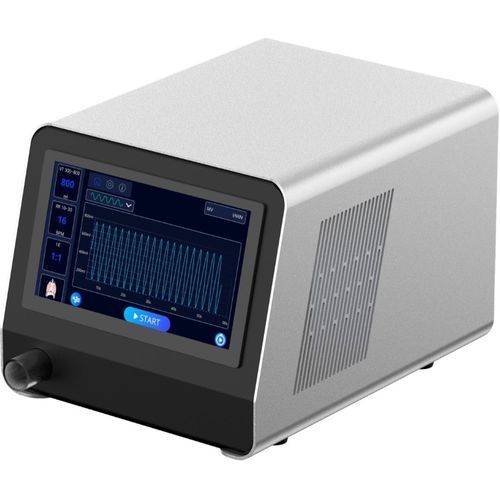

Mechanical ventilation test lung RT-BR001

for pulmonary function assessmentfor teachingfor pneumological care

Product overview
Simulated respiration pump RT-BR001 by Zlinemed designed to drive periodic deformation of internal organs in high-fidelity upper-body human models. Adjustable parameters such as respiratory rate and tidal volume allow realistic replication of physiological breathing dynamics and support import of custom waveforms for dynamic data simulation and comparative research.

Key features

• Waveform input support: accepts multiple respiratory control waveforms (e.g., sine, sawtooth).
• Realistic dynamic simulation of periodic organ deformation and displacement during breathing.
• Flexible parameter configuration for precise control of respiratory drive (RR, VT, I:E).
• Customizable user interface to adapt functionality and branding.
• Brand: Zlinemed; Model: RT-BR001.

Performance specifications

• Respiratory Rate (RR): 10–30 breaths/min
• Tidal Volume (VT): 200–800 mL
• I:E Ratio: 1:2, 1:1, 1:3
• Minute Ventilation: 4–8.5 L/min
• Airway pressure: varies with anatomical model structure

Compatibility & applications

• Interfaces with high-fidelity upper-body human organ models for medical education and research
• Suitable for dynamic data generation, device testing and comparative analysis
• Configurable for integration into laboratory simulation setups
