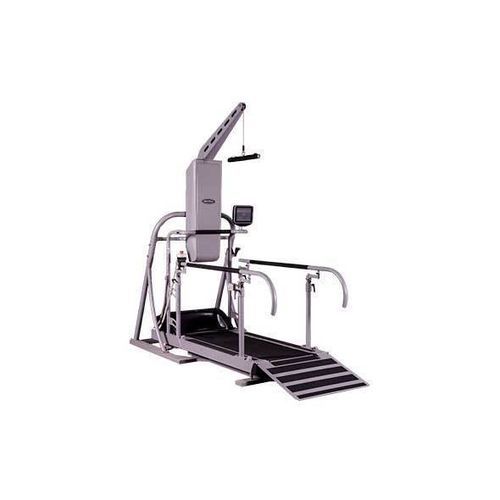

Treadmill with weight support air chamber Reaterra

with harness systemwith handrailswith incline

Product overview
The ReaTerra Neuro is a medical treadmill designed for motor and neurorehabilitation. It integrates dedicated rehabilitation software and biofeedback for heart rate and walking speed to support clinical assessment and controlled training. The system accommodates patients with limited mobility and can be adapted for pediatric use.

Key features

• Body weight unloading system to assist gait training
• Handrails adjustable in height and width (pediatric handrails available)
• Belt edge sensor for enhanced safety
• Laser level for roadway marking and visual cues during gait training
• Speed range (standard): 0.1–10 km/h (high-performance modification 0.5–30 km/h planned)
• Wheelchair ramp for easy patient access
• Adjustable treadmill direction and elevation angle
• Biofeedback for heart rate and walking speed; wireless heart rate sensor
• Touchscreen control with remote control / tablet support for remote operation
• Gait assessment program including step length and symmetry indicators
• 2 kW AC motor designed for continuous operation under increased load
• Programmable cardiac rehabilitation profiles and interval training options
• Supports 6-minute walk test for functional assessment of chronic heart failure patients
• Optional audible alarm when set heart rate limits are exceeded
• Can be configured for stress testing
• Planned variant with a wide running surface

Usage scenarios
Intended for motor and neurorehabilitation, cardiac rehabilitation (including individualized cardiac profiles and interval workouts), pediatric rehabilitation, functional assessments (gait analysis, 6-minute walk test) and as a stress testing device.

Characteristics / Technical specifications

• Model: ReaTerra Neuro (medical rehabilitation treadmill)
• Unloading system: body weight support
• Handrails: adjustable height and width; pediatric option available
• Safety: belt edge sensor
• Visual guidance: laser level for roadway marking
• Speed (standard): 0.1–10 km/h; high-performance option planned: 0.5–30 km/h
• Incline: adjustable elevation angle
• Access: wheelchair ramp
• Biofeedback: heart rate and walking speed monitoring
• Heart rate sensor: wireless
• Control: touchscreen; remote control/tablet support
• Assessment programs: gait characteristics (step length, symmetry)
• Motor: 2 kW AC motor
• Clinical tests: supports 6-minute walk test and stress testing
• Safety feature: optional audible alarm on exceeding heart rate limits
• Variants: wide running surface option planned
