Posture rehabilitation system Ekzarta

limbs mobility

Overview
Ekzarta combines diagnostic methods for fascial muscular chains with a kinesitherapy suspension system to assess function and implement individualized rehabilitation programs. The device is intended for clinical and rehabilitation settings and supports progressive loading to restore neuromuscular control and functional movement patterns.

Key benefits

• Selection of the optimal load level to match patient capability
• Restoration of neuromuscular control
• Pain reduction through targeted unloading and reeducation
• Development of correct movement patterns and biomechanics

Indications

• Spine and joint pain
• Large-joint arthritis
• Frozen shoulder (adhesive capsulitis)
• Stiff-person syndrome
• Spinal disc herniation
• Cerebral palsy (paediatric rehabilitation)
• Stroke rehabilitation
• Spinal cord injuries
• Rehab fitness and functional recovery programs

Operation

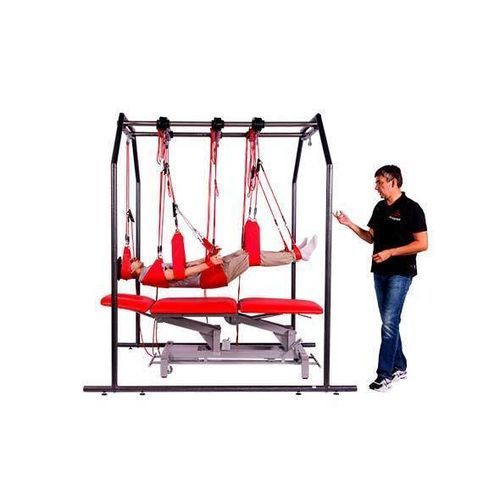

The patient lies on a table driven by an electric Kinezo-Expert drive. Slings are attached under the limbs, pelvis and/or chest using carabiners on cables suspended from the ceiling structure. A wide sling on elastic straps can be placed under the body to assist exercises and provide partial or full suspension. By adjusting the table height or the sling cable lengths, limbs or body segments are lifted or lowered to achieve the desired unloading and exercise positions. Rehabilitation sessions comprise a sequence of controlled exercises adapted to the diagnosis.

Technical specifications

• Complete ceiling structure – overall dimensions (L x W x H), mm / weight, kg: 1780 x 800 x 230 / 35
• Free-standing structure – overall dimensions (L x W x H), mm: 2190 x 1780 x 2300
• Length of cable with carabiner, mm: 5000
• Under-pelvis suspension sling, overall dimensions (L x W), mm: 890 x 250
• Leg suspension slings, overall dimensions (L x W), mm: 950 x 110
• Neck sling, overall dimensions (L x W), mm: 730 x 50
• Arm suspension slings, overall dimensions (L x W), mm: 340 x 50
• Arm suspension slings with handles, overall dimensions (L x W), mm: 340 x 50
• Elastic strap with clamp for pelvis, legs and torso, length, mm: 480
• Elastic strap with clamp for pelvis, legs and torso, length, mm: 700
• Elastic strap with clamp for arms and head, length, mm: 480
• Elastic strap with clamp for arms and head, length, mm: 700
• Short strap with clamp, length, mm: 450
• Long strap with clamp, length, mm: 760
