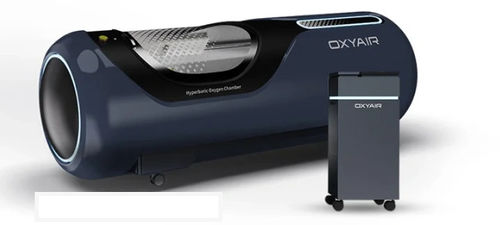

Oxygen therapy hyperbaric cabin monoplace
Add to favorites
Compare this product
Characteristics
- Application
- oxygen therapy
- Number of seats
- monoplace
- Maximum working pressure
Max.: 2.03 bar
(29.39 psi)Min.: 1.32 bar
(19.1 psi)- Length
2.2 m
(7'04" )- Width
0.8 m
(2'09" )- Empty weight
90 kg
(198 lb)
Description
Product overview
Benefits for rec & leisure centers
Included safety & comfort features
Chamber technical specifications
Oxygen concentrator technical specifications
Additional description
Model & specifications (summary)
- Hard-shell hyperbaric HBOT chamber designed for recovery and wellness use in recreation and leisure centers, clinics and sports facilities.
- Pressure range: 1.3 ATA – 2.0 ATA (hard shell model).
- Integrated systems: optional oxygen generator, compressor and cooler in combined central control unit (available on selected configurations).
- Interior touchscreen for solo/independent operation and simplified control.
- Built-in UV sterilisation for interior disinfection between sessions.
- Real-time monitoring: internal and external displays for pressure, oxygen concentration, temperature, humidity, session time and pressure curves.
- Integrated intercom for two-way communication between occupant and operator.
- Wide viewing window and sliding glass door for visibility and easy access.
- Optional built-in cooling designed for safe operation with oxygen-enriched environments (single-cooled air conditioning option).
Benefits for rec & leisure centers
- Accelerates recovery after workouts and physical activity.
- Helps reduce muscle soreness and fatigue.
- Supports improved circulation and oxygen delivery to tissues.
- Enhances energy and overall vitality, improving member satisfaction.
- Adds a premium wellness service; configurable to fit space and brand requirements.
Included safety & comfort features
- Automatic pressure control with emergency relief valve for rapid, safe depressurization.
- Interior lighting for comfort and orientation during sessions.
- Durable, lightweight composite construction suitable for frequent professional use.
- UV disinfection lamp integrated into chamber for hygiene between uses.
- Interior touchscreen for user-controlled sessions and exterior monitoring display for staff oversight.
Chamber technical specifications
- Model (commercial designation): 34"D
- Pressure (chamber): 1.3–2.0 ATA (hard shell product line; nominal 2.0 ATA)
- Material: Composite material / fiber-reinforced plastic
- Size (example): φ85 × L225 cm (34"D)
- Weight: 90 kg
- Average Oxygen (chamber): ≤ 25%
Oxygen concentrator technical specifications
- O2 flow rate: 20 L/min
- LCD display: displays chamber pressure and oxygen concentration, total working time and set time
- Size: 335 × 315 × 365 mm
- Weight: 23 kg
- Voltage: AC 110V / 220V, 50/60 Hz
- Power consumption: 600 W
Additional description
- Optional interior control panel enables solo operation capability.
- Designed for professional recovery environments (recovery clinics, wellness/leisure centers, sports recovery facilities) and for integration into service menus.
- Engineered for reliability and lower lifetime operating cost; medical-grade oxygen delivery options available.
- Customization and OEM/ODM support available for branding, colours and software/settings.
- Manufacturer provides logistics and after-sales support (installation materials, manuals, online video support) and optional on-site service in selected regions.
Model & specifications (summary)
- Model: 34"D
- Chamber pressure: 1.3–2.0 ATA
- Chamber material: composite / fiber-reinforced plastic
- Chamber size: φ85 × L225 cm (34"D)
- Chamber weight: 90 kg
- Oxygen concentrator flow: 20 L/min
- Concentrator size: 335 × 315 × 365 mm
- Concentrator weight: 23 kg
- Voltage: AC 110V / 220V, 50/60 Hz
- Concentrator power: 600 W
- Key features: interior touchscreen, UV sterilisation, intercom, interior lighting, automatic pressure control with emergency relief, optional chamber cooling
