Oxygen therapy hyperbaric cabin 2.0ATA

2 places

Short description

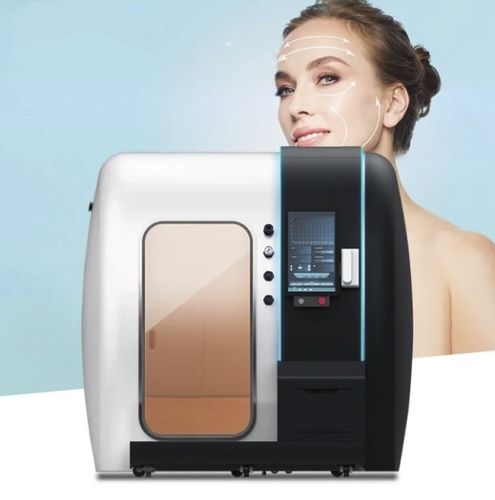

Experience oxygen therapy with the Dual-Person Hard-Shell Sitting Type 2.0 ATA Hyperbaric Oxygen Chamber OLV-YZM02. Designed for clinical and wellness use, it features a BIBS breathing system, dual-screen intelligent controls with presets and real-time monitoring, integrated air conditioning, entertainment system and ergonomic zero-gravity seats for two users.

Key benefits

• Supports cellular regeneration and recovery to complement longevity and aesthetic programs.
• Improves skin condition by enhancing tissue oxygenation and elasticity.
• May assist cognitive support and recovery after exertion.
• Contributes to immune support and optimized rest in monitored protocols.
• Suitable for longevity clinics, wellness centers, rehabilitation and home use under professional guidance.

Product parameters (summary)
Model No: OLV-YZM02
Material: Aerospace-grade 5182H34 aluminum-magnesium alloy
Chamber dimension: L2230 mm × W1900 mm × H1970 mm (L88 × W75 × H78 in)
Working pressure: 2.0 ATA
Chamber weight: 750 kg
Door thickness: 40 mm
Voltage: AC 240V / AC 110V, 50/60Hz
Input power: 200 W
Included: BIBS breathing system, double sofa (dual-seat), 43" TV, air conditioning, intercom, interior/exterior control panels, emergency stop button, emergency pressure relief device.

Air Conditioning Module — key specs
Exterior dimension: L365 × W445 × H600 mm; Interior dimension: L530 × W170 × H260 mm
Exterior weight: 30 kg; Internal weight: 4 kg
Temperature range: 2–10 °C
Air volume: 420 m³/hour
Wind speed: 5 m/s
Power: 200 W

Oxygen & Air Booster modules — key specs
Oxygen Module (model OLV-YC20S): dimension L500 × W400 × H960 mm; weight 90 kg; outlet pressure >200 KPa; oxygen flow 0–20 L/min (×2); oxygen purity 93±3%; oxygen outlet pressure >350 KPa; voltage AC 240V / AC 110V, 50/60Hz.
Air Booster Module (model OLV-YCZ01): dimension L500 × W400 × H960 mm; weight 100 kg; output pressure >350 KPa; air flow >400 L/min; noise ≤60 dB; voltage AC 240V / AC 110V, 50/60Hz; power 3100 W.

Key features & technical highlights

• BIBS (Built-In Breathing System) — separates supplied medical oxygen from exhaled air, vents exhalation externally to prevent CO2 accumulation and maintains controlled oxygen delivery during pressure changes.
• Modular design — separate chamber, oxygen and control modules for simplified transport, installation and maintenance; redundant oxygen and pressure modules for stable output.
• Hard-shell cabin — aerospace-grade 5182H34 aluminum-magnesium alloy construction for repeated pressure-cycle durability and corrosion resistance.
• Comprehensive safety engineering — medical-grade oxygen filtration, dual automatic pressure relief valves, manual emergency valve, emergency stop, reinforced 40 mm PC door with dual airbag seals and lifting-track system, internal low-voltage (≤24 V DC) circuits.
• Smart control system — dual HMIs (interior 15.6" and exterior 21.5"), seven preset therapy programs, automatic monitoring (pressure, oxygen, CO2, humidity, PM2.5), real-time pressure curve and alarm/self-diagnostics.
• Comfort & experience — panoramic window, dual zero-gravity recliners, 43" Android TV (multi-language, Bluetooth, streaming), photocatalytic air purification (PCO) and integrated air conditioning.
• One-stop business support — OEM/ODM customization, marketing assets, logistics options and after-sales support including installation materials and remote/video assistance.

Applications

• Longevity and anti-aging clinics
• Wellness centers and medical spas
• Rehabilitation and sports recovery facilities
• Medical and aesthetic clinics
• Home use for targeted therapy under guidance

Specifications / Technical data

• Model No (chamber): OLV-YZM02
• Commercial name / type: Dual-Person Hard Shell Sitting Type
• Chamber material: Aerospace-grade 5182H34 aluminum-magnesium alloy
• Chamber dimension: L2230 × W1900 × H1970 mm (L88 × W75 × H78 in)
• Working pressure: 2.0 ATA
• Chamber weight: 750 kg
• Door thickness: 40 mm (PC door with dual airbag seals)
• Electrical: AC 240V / AC 110V, 50/60Hz; internal low-voltage DC ≤24V for safety
• Chamber input power: 200 W
• Included systems: BIBS breathing system, dual zero-gravity seats, 43" smart TV, integrated air conditioning, intercom, interior/exterior control panels, emergency stop, emergency pressure relief
• Oxygen module: OLV-YC20S — dimension L500 × W400 × H960 mm, weight 90 kg, outlet pressure >200 KPa, oxygen flow 0–20 L/min ×2, purity 93±3%
• Air booster module: OLV-YCZ01 — dimension L500 × W400 × H960 mm, weight 100 kg, output pressure >350 KPa, air flow >400 L/min, noise ≤60 dB, power 3100 W
• Air conditioning module: exterior L365 × W445 × H600 mm, exterior weight 30 kg; temperature control 2–10 °C; air volume 420 m³/h; power 200 W
• Safety: dual automatic pressure relief valves, manual emergency valve, SIEMENS emergency stop button, medical-grade oxygen filtration, grounded chassis, leak-resistant welds
