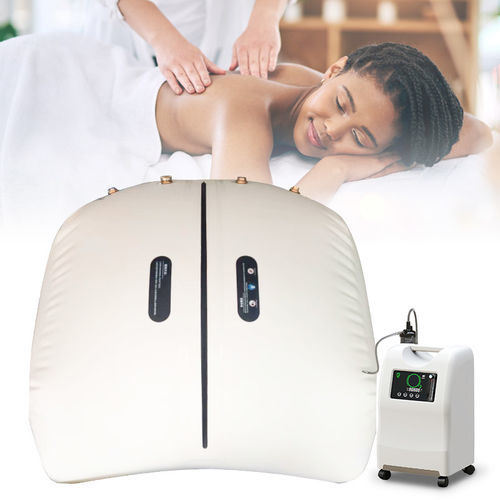

Oxygen therapy hyperbaric cabin 00209inflatable2 places
Add to favorites
Compare this product
Characteristics
- Application
- oxygen therapy
- Configuration
- inflatable
- Number of seats
- 2 places
- Maximum working pressure
Max.: 1.32 bar
(19.1 psi)Min.: 1.11 bar
(16.17 psi)- Length
1.6 m
(5'02" )- Height
1.2 m
(3'11" )- Width
1.3 m
(4'03" )
Description
Description
Product highlights
Operates independently without external assistance. Safety-focused design; installation aligns with operational requirements of the pressure-reducing valve.
Technical parameters
Product Name: 2 PERSON USE Sitting Hyperbaric oxygen chamber
Technical Parameters: Oxygen: 10 L/min; Air: 75 L/min
Air & O2 Automatic Control System: pressurize the chamber by air at 120 L/min within 1 min; booster mixed 93%±3% at 5 L/min and air 60 L/min automatically after 1 min; can adjust according to requirement
Voltage: AC110V/220V; 50/60Hz
Outlets: Oxygen, Air
Chamber Material: TPU
Working Pressure: 1.1 ATA - 1.3 ATA
Device Size: L160 × W130 × H120 (cm)
Optional: Air Cooler; Metal Frame and Connecting Rod; Cover Assembly
Specifications
- Operating pressure: 1.1 ATA – 1.3 ATA
- YKK zipper seal for straightforward entry
- Single-operator design — can be operated by one person
- Emergency valve enables rapid depressurization
Product highlights
Operates independently without external assistance. Safety-focused design; installation aligns with operational requirements of the pressure-reducing valve.
Technical parameters
Product Name: 2 PERSON USE Sitting Hyperbaric oxygen chamber
Technical Parameters: Oxygen: 10 L/min; Air: 75 L/min
Air & O2 Automatic Control System: pressurize the chamber by air at 120 L/min within 1 min; booster mixed 93%±3% at 5 L/min and air 60 L/min automatically after 1 min; can adjust according to requirement
Voltage: AC110V/220V; 50/60Hz
Outlets: Oxygen, Air
Chamber Material: TPU
Working Pressure: 1.1 ATA - 1.3 ATA
Device Size: L160 × W130 × H120 (cm)
Optional: Air Cooler; Metal Frame and Connecting Rod; Cover Assembly
Specifications
- Operating pressure range: 1.1 ATA – 1.3 ATA
- Oxygen flow: 10 L/min
- Air flow: 75 L/min (pressurize by air 120 L/min within 1 min)
- Booster mix: ~93% ±3% at 5 L/min (with air 60 L/min after initial pressurization)
- Control: Air & O2 automatic control system; adjustable per requirement
- Voltage: AC 110V/220V, 50/60 Hz
- Outlets: Oxygen and Air
- Material: TPU (chamber)
- Device dimensions: L160 × W130 × H120 cm
- Optional accessories: Air cooler, metal frame and connecting rod, cover assembly
