Oxygen therapy hyperbaric cabin

inflatablemonoplace

Overview

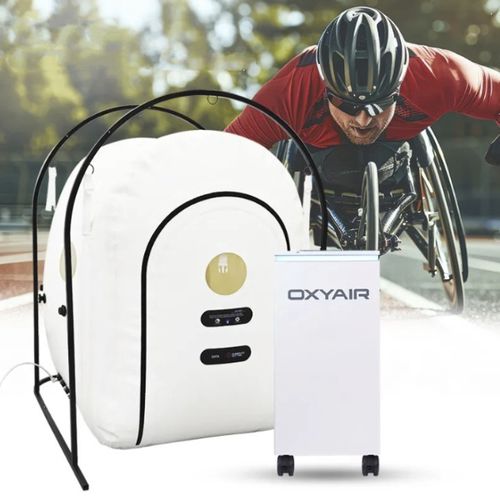

Designed for wheelchair users, this portable soft-shell hyperbaric chamber enables seated therapy without transfer. It pairs a wheelchair-accessible chamber with an integrated 2-in-1 oxygen concentrator and air compressor to provide space-efficient, clinically oriented sessions for sports recovery and rehabilitation.

Key Features

• Wheelchair-Friendly Design: Wide entry and roomy interior allow wheelchair entry without transfer. Large viewing windows reduce claustrophobia and permit caregiver monitoring.
• Medical-Grade Materials: Constructed from Grade 5 TPU — scratch- and pressure-resistant for extended service life.
• Safe Pressure Range: Engineered to reach up to 1.3 ATA (4.5 PSI) with multi-layer protection including automatic/manual release valves and an emergency stop.
• Integrated 2-in-1 System: Combined oxygen concentrator and air compressor save space while delivering therapeutic oxygen flow.
• Remote Operation: Handheld remote and intelligent touchscreen enable easy control from inside or outside the chamber.
• Optional Accessories: Color covers, air cooler, internal/external frame and folding chair for clinical or home customization.

Sports Recovery Benefits for Wheelchair Users

• Accelerates recovery from injury, muscle strain and overuse.
• Reduces inflammation and post-exercise soreness following therapy or adaptive training.
• Supports circulation, tissue repair and cellular regeneration.
• Improves energy levels, stamina and functional performance over time.
• Provides a low-impact recovery solution suitable for daily use.

System Notes
The combined chamber + concentrator design maintains internal ambient oxygen below 30% to minimize combustion risk while supplying medical-grade oxygen through a mask (concentrator output up to 93% ±3%). An optional internal cooling system enhances user comfort during sessions.

Chamber Technical Specifications / Oxygen Concentrator Technical Specifications
Pressure: 1.3 ATA (4.5 PSI)
Material (Chamber): Grade 5 TPU (durable, pressure-resistant)
Chamber Size: L140 × W100 × H160 cm
Chamber O2 Purity (internal ambient): Less than 30% (safety)
Windows: Both sides, 15 cm each

Oxygen / Air System: Oxygen Flow: 10 L/min; Air Flow: 110 L/min
Concentrator O2 Purity: 93% ± 3%
Concentrator Size: 39 × 39 × 89 cm
Voltage: AC 220V 50Hz or AC 110V 60Hz
Interface: Intelligent touch screen (2-in-1 technology)

Use Cases & Applications

• Rehabilitation centers and clinics: Support recovery for patients with limited mobility.
• Sports recovery facilities: Reduce downtime and enhance post-training recovery.
• Home use: Portable, foldable design enables at-home therapy for ongoing rehabilitation.
• OEM/ODM: Custom branding, color options and software settings available for business customers.

Service & Support Highlights

• Comprehensive service including OEM/ODM customization, marketing materials and dropshipping options.
• Installation materials (manuals and videos) provided; remote/online support available; on-site service offered in selected regions.

Technical Specifications

• Pressure rating: 1.3 ATA (4.5 PSI)
• Chamber material: Grade 5 TPU (scratch and heat resistant)
• Chamber internal dimensions: L140 × W100 × H160 cm
• Chamber windows: Side windows 15 cm each, plus a large top window
• Oxygen concentrator output: Up to 10 L/min (O2 purity 93% ± 3%)
• Air flow (system): 110 L/min
• Concentrator dimensions: 39 × 39 × 89 cm
• Operating voltage: AC 220V 50Hz or AC 110V 60Hz
• Control: Intelligent touchscreen + handheld remote
• Safety: Multi-layer pressure protection (automatic/manual release valves, emergency stop)
• Optional add-ons: Color covers (6 options), air cooler, internal/external frame, folding chair
