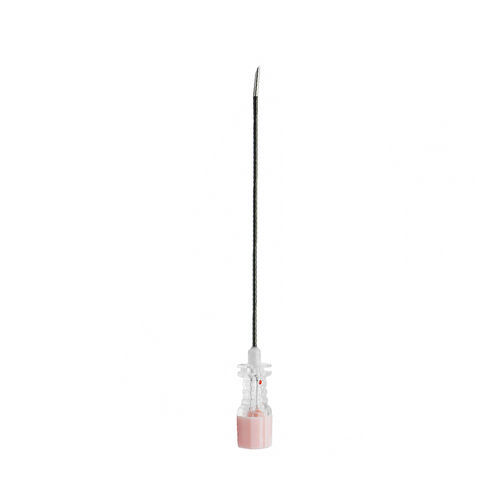

Injection cannula ZPT-RFC-001

accessstraightcurved

Product Overview
ZorayPT RF cannula (Model ZPT-RFC-001) is a single-use radiofrequency cannula engineered for precise radiofrequency ablation (RFA) and targeted nerve block procedures in chronic pain management. The device consists of a needle hub, insulated outer needle tube, inner needle tube and protector cap, manufactured from medical-grade SUS304 stainless steel with PP and ABS components. Available in standard lengths (50 mm, 98 mm, 143 mm) and customizable geometries, each unit is EO sterilized, individually packaged for single-use and has a 5-year shelf life.

Key Features

• Material: Medical-grade SUS304 stainless steel + PP/ABS (customizable)
• Lengths: 50 mm / 98 mm / 143 mm (customizable)
• OD/ID options: 0.70/0.45 mm, 0.90/0.60 mm, 1.25/0.85 mm (customizable)
• Active tip length: 5 mm / 10 mm (customizable)
• Tip options: Straight, curved, blunt, sharp (customizable)
• Bevel designs: Quincke or lancet (customizable)
• Surface: Lubricated or non-lubricated; echogenic or non-echogenic markings available
• OEM/ODM in-house production enabling full customization

Applications

• Ideal for:
  • Chronic pain management: radiofrequency ablation for back, neck and joint pain
  • Nerve blocks: targeted interruption of pain signals in the spine and extremities
  • Spinal pain treatment: facet joint and sacroiliac joint interventions

Why Choose ZorayPT?

• One-stop manufacturing: in-house processes for quality control
• ISO 13485 certified; production in a Class 100,000 cleanroom
• Precise insulation and tip manufacturing to support safe RFA delivery
• Automated production enabling reduced lead times
• Integrated OEM/ODM reduces production complexity

RF Cannula Specifications

• Model: ZPT-RFC-001
• Material: Medical-grade SUS304 stainless steel; PP and ABS components
• Lengths: 50 mm / 98 mm / 143 mm (customizable)
• OD/ID: 0.70/0.45 mm; 0.90/0.60 mm; 1.25/0.85 mm (customizable)
• Active tip: 5 mm / 10 mm (customizable)
• Tip type: Straight, curved, blunt, sharp; bevels: Quincke or lancet
• Surface options: Lubricated/non-lubricated; echogenic/non-echogenic markings
• Sterilization & packaging: EO sterilized; individually packaged, single-use; shelf life: 5 years
