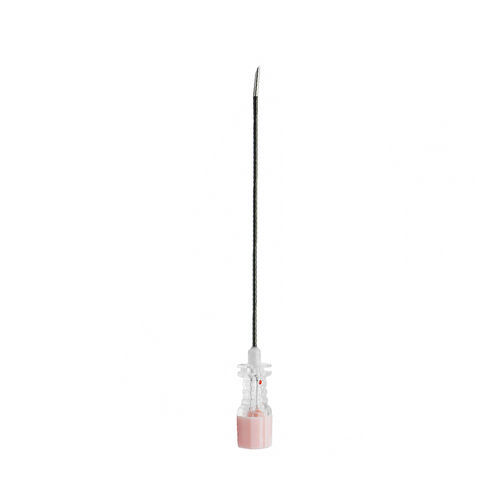

Access cannula ZPT-TN-001

straightcurvedstainless steel

Product Overview
ZPT-TN-001 thermolesion needle is a single-use radiofrequency (RF) cannula designed for precise thermolesion and nerve coagulation in pain management. Constructed with medical-grade SUS304 stainless steel and PP/ABS components, the assembly includes a needle hub, insulated outer tube, inner tube and protector cap. Standard lengths, diameters and tip exposures are provided with customization options. Each needle is EO sterilized and individually packaged for single use, with a 5-year shelf life.

Detailed Description
The insulated outer tube features a dielectric-strength coating to direct RF energy to the active tip and limit collateral tissue heating. Tip geometry options (straight, curved, blunt, sharp) and bevel styles (Quincke or lancet) enable procedural flexibility. Surface finishes include electropolishing to reduce penetration force, siliconised lubrication for smoother insertion and echogenic markings to improve ultrasound visibility. Active tip lengths are selectable to control lesion size and heat delivery.

Key Features

• Materials: Medical-grade SUS304 stainless steel; PP and ABS polymer parts (customizable)
• Standard lengths: 50 mm, 98 mm, 143 mm (custom lengths available)
• OD/ID examples: 0.70/0.45 mm, 0.90/0.60 mm, 1.25/0.85 mm (customizable)
• Active tip exposure: 5 mm, 10 mm (customizable up to 15 mm)
• Tip types: Straight, curved, blunt, sharp; bevel: Quincke or lancet
• Surface options: Electropolished tips; siliconised (lubricated); echogenic marking option
• Dielectric-strength electrical insulation to prevent RF energy loss
• Single-use, EO sterilized; shelf life 5 years

Applications

• Chronic pain management: radiofrequency ablation for back, neck and joint pain
• Nerve blocks: targeted interruption of pain signals in spine and extremities
• Spinal pain interventions: facet joint and sacroiliac procedures

Why Choose This Product

• In-house OEM/ODM manufacturing for consistent process control
• Manufactured in ISO 13485 environment and Class 100,000 cleanroom
• Precision insulation and electropolished tips for accurate and controlled RF delivery
• Automated production enabling competitive lead times and integrated cost control

Thermolesion Needle Specifications
Product Model: ZPT-TN-001
Material: Medical-grade SUS304 stainless steel + PP/ABS
Length: 50 mm / 98 mm / 143 mm (customizable)
OD/ID: 0.70/0.45 mm, 0.90/0.60 mm, 1.25/0.85 mm (customizable)
Active Tip: 5 mm / 10 mm (customizable up to 15 mm)
Tip Type: Straight, curved, blunt, sharp (customizable)
Application: Radiofrequency ablation, nerve blocks, spinal pain treatment

Technical specifications

• Model: ZPT-TN-001
• Single-use radiofrequency cannula
• Components: needle hub, insulated outer tube, inner tube, protector cap
• Materials: SUS304 stainless steel; PP and ABS polymer parts
• Standard lengths: 50 mm, 98 mm, 143 mm; custom lengths available
• OD/ID typical options: 0.70/0.45 mm, 0.90/0.60 mm, 1.25/0.85 mm; customizable
• Active tip exposure: 5 mm, 10 mm; customizable up to 15 mm
• Tip geometries: straight, curved, blunt, sharp; bevel: Quincke or lancet
• Surface treatments: electropolished tips, siliconised lubrication option
• Ultrasound visibility: echogenic marking option
• Sterilization: EO sterilized; shelf life: 5 years
• Intended use: radiofrequency ablation and nerve coagulation in pain management
