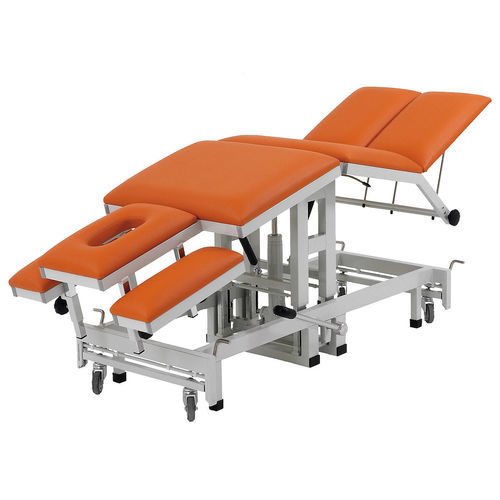

Orthopedic examination table TH-1065/Y

physiotherapyadulthydraulic

Product overview
The AGA-THERA TH-1065 therapy table provides a seven-section tabletop and multiple stepless adjustments for clinical use in physiotherapy, chiropractic and orthopedics. Infinitely variable adjustments are available for height, armrests, leg section, back section, head section with face cutout and seat section to accommodate Trendelenburg, anti‑Trendelenburg and drainage positions.

Height adjustment variants

• Manual (hand crank) — Article No.: TH-1065/H
• Hydraulic (foot pump) — Article No.: TH-1065/Y
• Electric motor (hand switch or optional foot switch) — Article No.: TH-1065/E

Features

• Precision double square profiles to prevent rocking and swinging of the lying surfaces.
• Manual crank: maintenance-free gearing, transmission ratio i = 10 mm/rev; crank stows under tabletop.
• Hydraulic: central foot pump; optional additional foot lever (FPH-10) enables operation from both sides.
• Electric: quiet, maintenance-free motor with hand switch (optional foot switch) and key lock. Motor values: 230 V, 50/60 Hz, 3.7 A, 850 W, IPX4, v = 11 mm/s, 10,000 N.
• Wide substructure with retractable castor base for high stability under load.
• Retractable castor system lifts the table onto Ø 75 mm swivel castors via foot control or lowers it onto feet for stable standing.
• Seven upholstery segments (armrests, head, back, seat and leg sections) each with 64 mm thickness.

Standard configuration

• Mobile base with retractable swivel castors Ø 75 mm.
• Floor protectors (clip-on caps) on the four adjustable feet.

Technical data
Article number: TH-1065/H | TH-1065/Y | TH-1065/E
Frame: Lacquered
Length (total): 1,920 mm; Head / Back / Seat / Foot sections: 430 / 515 / 455 / 505 mm
Width: 620 mm
Height adjustment: 650 - 850 mm (hand crank / hydraulics / electric motor)
Upholstery segments: 7 sections
Upholstery thickness: 64 mm
Head section adjustment: +20° (grid)
Armrests: -140 mm (clamping)
Seat / backrest adjustments: +/-20° (gas spring)
Leg section adjustments: +/-30° (clamping rods)
Trendelenburg adjustment: 20° (gas spring)
Anti‑Trendelenburg adjustment: 20° (gas spring)
Load capacity: 150 kg

Accessories & additional options (examples)

• FPH-10: Foot pedal with transmission shaft and connecting piece to operate hydraulics from both sides.
• HRM-14: Semi-circular roll, foam filling, Ø 200 x 400 mm, synthetic leather, with zipper.
• KKM-16: Head wedge, foam filling, 450 x 400 x 80 / 10 mm (L x W x H), synthetic leather, with zipper.
• RLM-20 / RM-12: Knee roll Ø 180 x 560 mm; Neck roll Ø 140 x 400 mm; foam-filled rolls with zipper.

Technical specifications

• Series: TH-1065 (variants: TH-1065/H, TH-1065/Y, TH-1065/E)
• Tabletop sections: 7
• Total length: 1,920 mm
• Width: 620 mm
• Height adjustment range: 650–850 mm
• Upholstery thickness: 64 mm
• Head tilt: +20°
• Seat/back tilt: ±20°
• Leg section tilt: ±30°
• Trendelenburg / Anti‑Trendelenburg: 20°
• Load capacity: 150 kg
• Retractable castors Ø 75 mm; floor protectors on adjustable feet
