Ultrasound imaging examination table SO-ZK 1065/EE

adultelectricreverse Trendelenburg

Overview
Sonography is the use of ultrasound waves in medicine as an imaging method for examining organic tissue. A specially tailored sonography table that allows appropriate patient positioning increases the quality of the images. The AGA sonography tables are available with a two-part or three-part tabletop and with a fixed height. Adjustable positions (roof position, Trendelenburg/Anti-Trendelenburg, head down) and specific head adjustments allow improved sonographic access (e.g. thyroid imaging) and support sonographically guided injections and interventions.

Versions

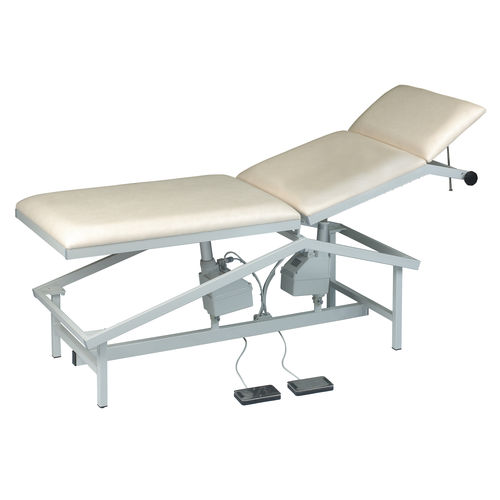

• 3-piece tabletop — Article No.: SO-ZK 1065/EE: three upholstery segments (head, back, leg) with electrically adjustable leg and back sections and manually adjustable head section; allow horizontal position, Trendelenburg/Anti‑Trendelenburg positions, roof position and head down position.
• 2-piece tabletop — Article No.: SO-1065: two halves adjusted with gas pressure springs enabling horizontal position, Trendelenburg/Anti‑Trendelenburg positions and roof position; adjustments are set without patient present.

Features

• Separate control of upholstery parts permits converting from roof position to horizontal using Trendelenburg/Anti‑Trendelenburg adjustments.
• Wide extension of the base frame ensures high stability; four adjustable feet equipped with floor protectors (impact caps).
• Padding segments thickness: 64 mm each.
• Table height (with cushions horizontal): 700 mm (standard).

SO-ZK 1065/EE (3-piece) — key details

• Tabletop segments (head/back and leg sections) continuously adjusted ± by electric motors: +20° / -17° for back/leg sections (electric motor); headrest continuously adjustable +40° / -30° and locked with clamping handle and clamping rod mechanism.
• Controls via foot switch (alternative hand switch available at no extra charge).
• Designed to allow adjustments with heavier patients (up to 200 kg). Adjustment systems equipped with key locks.
• Motor connection values per motor: 230 V, 50/60 Hz, 3.7 A, 850 W, IPX4, speed v = 11 mm/s, force 10,000 N.

SO-1065 (2-piece) — key details

• Two halves continuously adjusted using gas pressure springs (+15° / -17°) and locked with handwheels; required examination positions must be preset (without patient).

Technical data (summary)
Sonography tables (SO-1065 / SO-ZK 1065/EE)
Article number: SO-1065 / SO-ZK 1065/EE
Length (head to foot sections): 1,900 mm — SO-1065: 950 / 950 mm ; SO-ZK 1065/EE: 350 / 600 / 950 mm
Width: 650 mm (standard)
Height: 700 mm (standard)
Upholstery segments: 2 sections (SO-1065) / 3 sections (SO-ZK 1065/EE)
Upholstery thickness: 64 mm
Load capacity: 150 kg (SO-1065) / 200 kg (SO-ZK 1065/EE)
Head section adjustment: SO-1065: none ; SO-ZK 1065/EE: -30° / +40° (clamping rods)
Foot/backrest adjustments: SO-1065: -17° / +15° (gas pressure springs) ; SO-ZK 1065/EE: -17° / +20° (electric motors)
Trendelenburg adjustment: SO-1065: 15° (gas pressure springs) ; SO-ZK 1065/EE: 17° (electric motors)
Anti‑Trendelenburg adjustment: same as Trendelenburg values above

Standard configuration

• Floor protectors (clip-on caps) on the four adjustable feet.

Accessories & additional options (selection)

• HRM-14: Semi-circular roll, foam filling, Ø 200 x 400 mm, synthetic leather cover with zipper.
• KKM-16: Head wedge, foam filling, 450 x 400 x 80/10 mm (L x W x H), synthetic leather cover with zipper.
• LR-75 / LR-125: Set of castors Ø 75 mm or Ø 125 mm — four swivel castors, two lockable.
• LR/Z-125: Central locking castor system, double swivel castors Ø 125 mm, linked and operable by diagonally arranged foot pedals (retrofitting not possible).
• NF-30: Levelling feet for square steel tube 30 x 30 mm (set of 4) with impact caps and levelling function.
• OPS-40/A, OPS-60/A: Standard rails (pair), approx. length 400 mm or 600 mm, made of stainless steel for mounting on the upholstery frame (retrofitting not possible).
• P-2065: Paper roll holder, chrome-plated, for mounting on table legs (consists of brackets, clamps and holder bar, length 615 mm, Ø 20 x 1 mm).
• RLM-20 / RM-12: Knee roll (Ø 180 x 560 mm) / Neck roll (Ø 140 x 400 mm), foam filling, synthetic leather cover with zipper.

Product variants / examples

• Various frame colours: light grey (RAL 7035), white aluminium (RAL 9006), pure white (RAL 9010); glossy, disinfectant-resistant finish. Other RAL colours available as type variants (additional costs, considered type variants).
• Upholstery colours: synthetic leather selection (e.g. VOWAled Pisa). Electrically conductive MEDISTAT synthetic leather (black) available at extra cost (with equipotential bonding socket on frame).
• Examples of implemented customer-specific variants: different table widths (e.g. 800 mm), heights (e.g. 620 mm, 750 mm), mobile base on retractable castors (LR/F-125), castor lifting systems and other equipment components.

Caractéristiques / spécifications techniques

• Product family: Sonography tables (SO series)
• Available versions: 2-section (SO-1065) and 3-section (SO-ZK 1065/EE)
• Standard table length: 1,900 mm
• Standard table width: 650 mm (other widths available as variants)
• Standard table height: 700 mm (other heights shown as variants: 620 mm, 750 mm)
• Upholstery thickness: 64 mm per segment
• Upholstery segments: 2 (SO-1065) / 3 (SO-ZK 1065/EE)
• Load capacity: 150 kg (SO-1065) / 200 kg (SO-ZK 1065/EE)
• Head section adjustment (SO-ZK 1065/EE): +40° / -30° (clamping rod)
• Back/leg adjustment: SO-1065: -17° / +15° (gas pressure springs) ; SO-ZK 1065/EE: -17° / +20° (electric motors)
• Trendelenburg / Anti‑Trendelenburg: SO-1065: ±15° (gas) ; SO-ZK 1065/EE: ±17° (electric)
• Motor data (SO-ZK 1065/EE): 230 V, 50/60 Hz, 3.7 A, 850 W, IPX4, 11 mm/s, 10,000 N
